5-Pin SMD Micro USB Connector
(Total 4 Products)
-

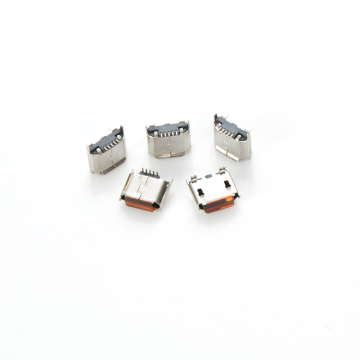

Brand:szxyqMin. Order:1 Piece/PiecesModel No:062032Transportation:Ocean,Land,Air,ExpressSupply Ability:1 million pieces per monthPlace of Origin:chinaThe MICRO 5pin is a standard-size Micro USB Female Connectors component tailored for reliable data and charging performance. With a horizontal SMT layout, it is widely used in devices such as power banks, smartphones, Bluetooth speakers, and... -

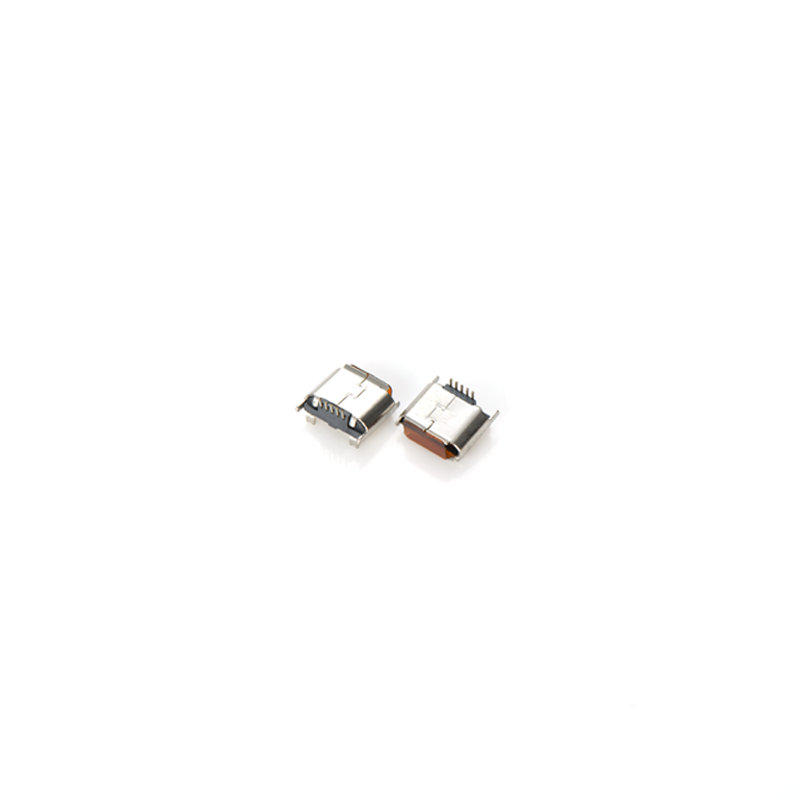

Brand:szxyqMin. Order:1 Piece/PiecesModel No:062031Transportation:Ocean,Land,Air,ExpressSupply Ability:1 million pieces per monthPlace of Origin:chinaThe micro 5PIN connector is a compact and high-performance 5-Pin SMD Micro USB Connector designed for integration into mobile devices, IoT modules, and embedded systems. Its small footprint and surface-mount construction make it ideal for... -

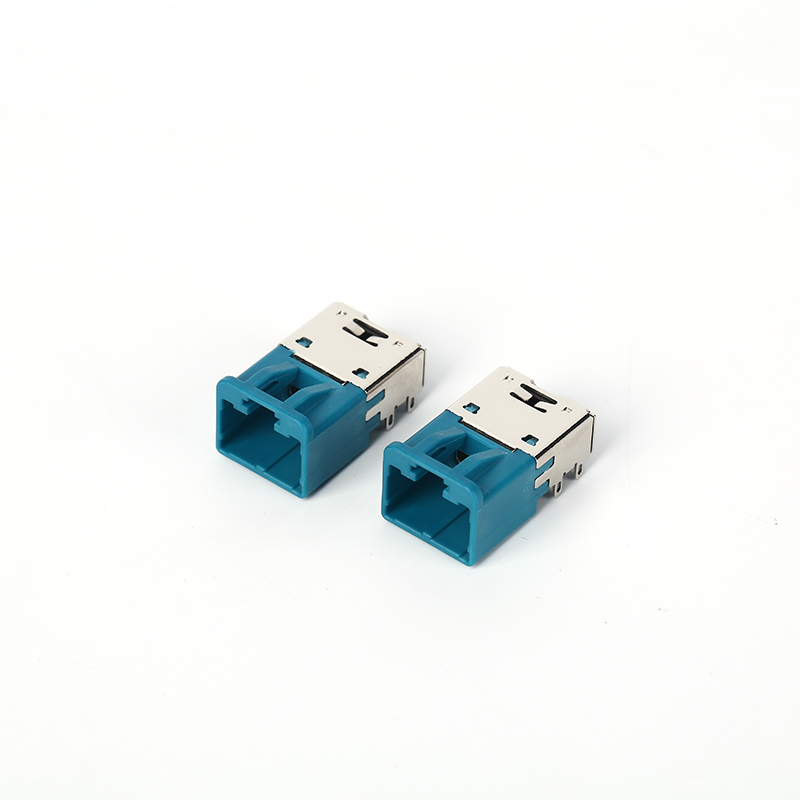

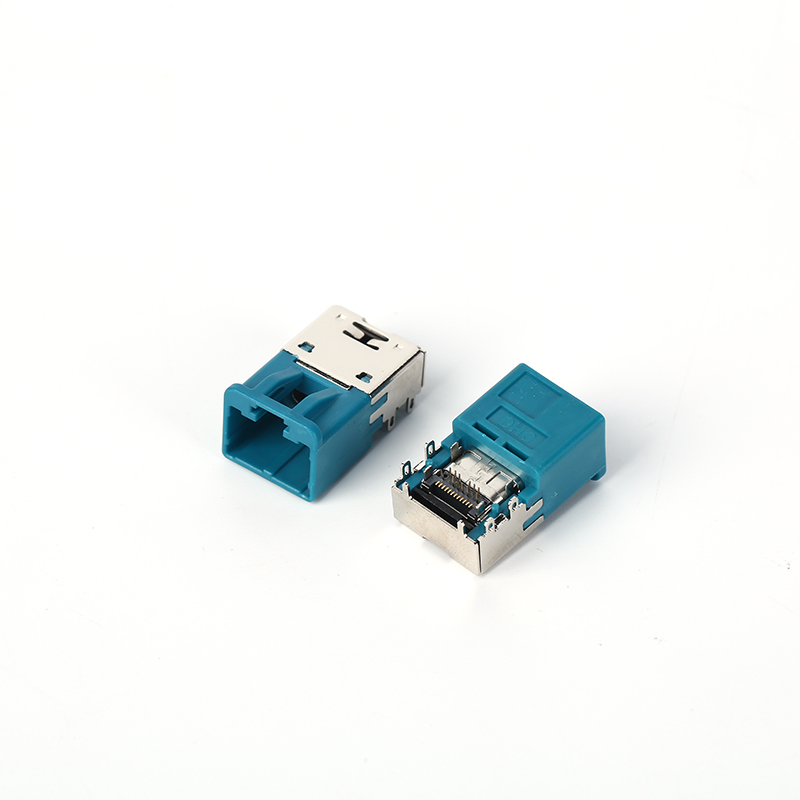

Brand:szxyqMin. Order:1 Piece/PiecesModel No:052841Transportation:Ocean,Land,Air,ExpressSupply Ability:1 million pieces per monthPlace of Origin:chinaBuilt to meet the demanding requirements of modern automotive systems, this 5-Pin SMD Micro USB Female Connector delivers robust data and power performance in a compact, durable form. Designed for integration into automotive infotainment,... -

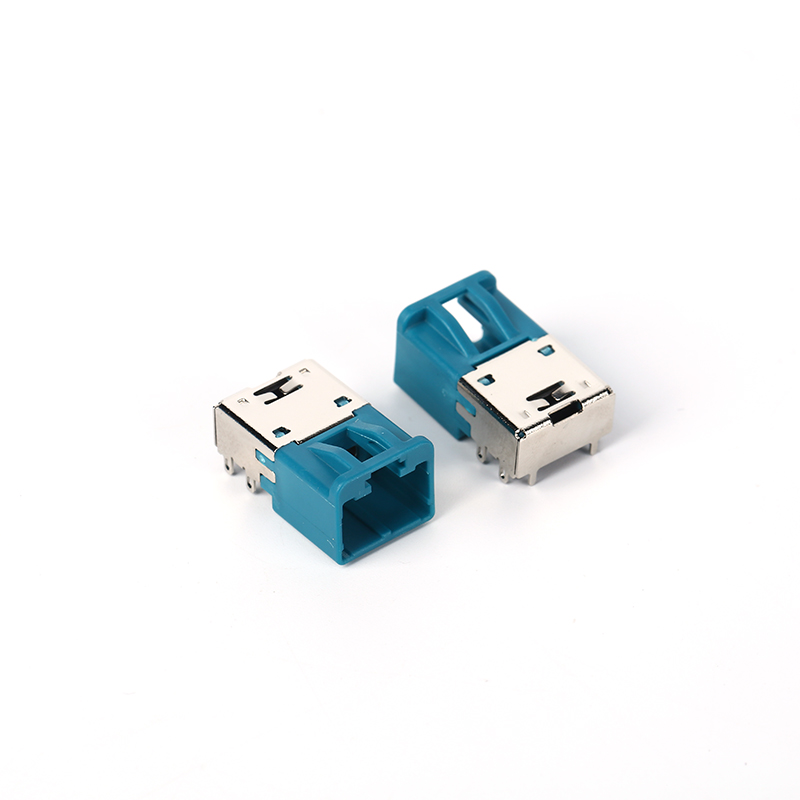

Brand:szxyqMin. Order:1 Piece/PiecesModel No:052840Transportation:Ocean,Land,Air,ExpressSupply Ability:1 million pieces per monthPlace of Origin:chinaBuilt to meet the demanding requirements of modern automotive systems, this 5-Pin SMD Micro USB Female Connector delivers robust data and power performance in a compact, durable form. Designed for integration into automotive infotainment,...
5-Pin SMD Micro USB Connector

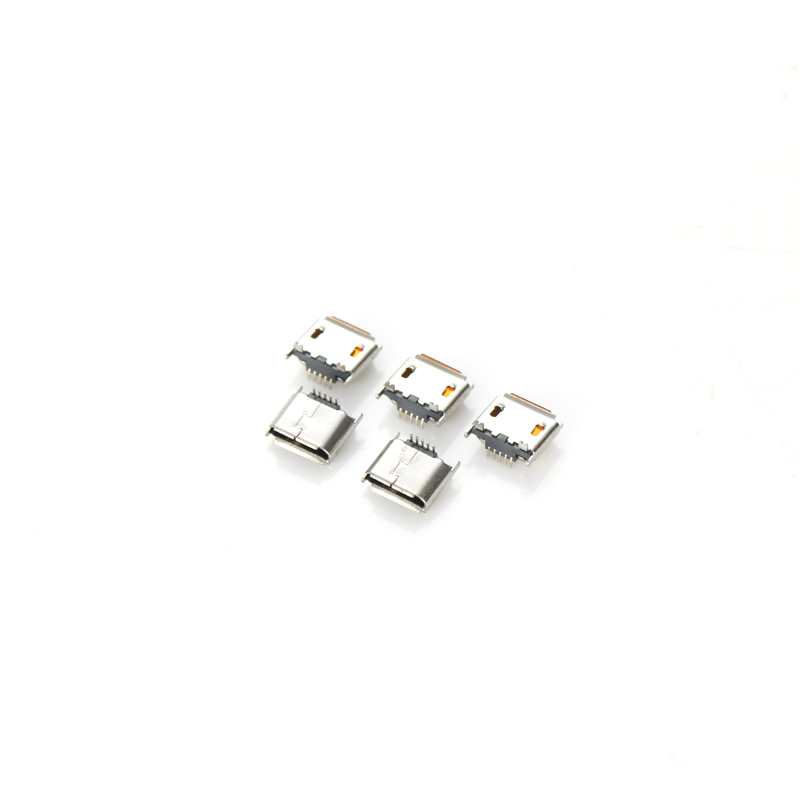

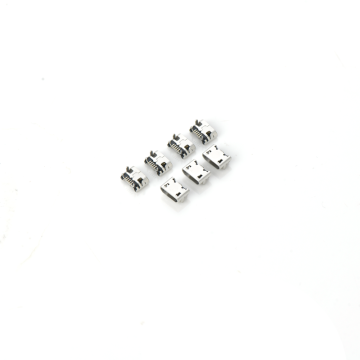

szxyq's 5-Pin SMD Micro USB Connector strictly adheres to the USB 2.0 standard, specifically designed to meet the compact and efficient connection requirements of small electronic devices. Using surface mount device (SMD) technology, it can be directly soldered onto the PCB board, saving space and providing strong stability. The 5-pin design precisely matches Micro USB male connectors. The contact terminals are made of high-purity phosphor bronze with nickel plating, offering excellent electrical conductivity and corrosion resistance.
Product Idea
Please listen to us
szxyq's 5-Pin SMD Micro USB Connector adheres to the concept of "Precise Connection, Empowering Intelligence". We understand that in the era of continuous miniaturization and integration of smart devices, every small connection component is crucial. From research and design to production and manufacturing, we always focus on user needs, paying attention to process innovation and quality control. We are committed to providing users with high-performance and reliable connection products through advanced technology, strict quality standards, and user-friendly design, becoming a reliable partner in promoting the efficient operation of smart devices and contributing to the convenience and innovation of digital life.
original concept
Product Features
SMD soldering process
Adopts surface mount technology, suitable for automated production, improving assembly efficiency and reducing labor costs.
Compact space adaptation
Small in size, suitable for portable devices with limited space, facilitating the thin and lightweight design of products.
Stable electrical connection
Nickel-plated terminals made of high-purity phosphor bronze have low contact resistance, ensuring stable and efficient power and data transmission.
Precise pin positioning
Manufactured with high-precision molds, the pin pitch is accurate, and the fit after soldering to the PCB board is high, reducing the risk of cold soldering.
Application Scenarios
Internal connection of smartphones
Serves as the connection interface between the phone's motherboard and charging and data transfer modules, ensuring the operation of the device's core functions.
Tablet integration
Integrated into tablets, used for charging, connecting to computers for file transfer and data synchronization.
External hard drive interface
Serves as the interface for connecting external hard drives to computers, enabling fast data storage and reading.
FAQ
How can I determine if the 5-Pin SMD Micro USB Connector has poor soldering?
If the device experiences abnormal charging, data transfer interruptions, or instability, and after ruling out faults in other components, it may be due to poor soldering of the connector. You can check for signs of cold soldering or short circuits at the soldering points on the PCB board, or use professional testing equipment to measure the resistance of the soldering points.
What soldering parameters should be paid attention to when installing the 5-Pin SMD Micro USB Connector?
The recommended soldering temperature is controlled between 240℃ and 260℃, and the soldering time should not exceed 3 seconds to avoid damaging the connector due to high temperature. At the same time, ensure that the soldering points are clean, use appropriate solder and flux, and ensure firm soldering.
What is the difference between the 5-Pin SMD Micro USB Connector and ordinary Micro USB connectors?
The 5-Pin SMD Micro USB Connector uses surface mount technology and is suitable for soldering on PCB boards, with a more compact and stable installation. Ordinary Micro USB connectors are mostly plug-in type, suitable for different assembly scenarios. In addition, the SMD type has more advantages in automated production.
Will the connector be damaged when used in a high-temperature environment?
Although this connector can work stably in an environment ranging from -10℃ to 80℃, long-term exposure to high temperatures will accelerate material aging and affect performance and lifespan. It is recommended to avoid long-term use in environments exceeding 80℃. After using in a high-temperature environment, check the performance of the connector.
