Rated temperature :80℃ (optional)
Rated voltage :30V AC (optional)
Function:
1.Outstanding waterproof and moisture-proof performance
It adopts SR-PVC high-density insulation layer, effectively blocking water penetration
Suitable for outdoor damp environments (such as security cameras, courtyard lighting, etc.)
Tin-plated copper conductors can prevent oxidation and extend their service life in damp environments
2. Safety flame retardant protection
Passed the UL VW-1 vertical burning test and self-extinguishes upon contact with fire
Reduce the risk of short-circuit fires and meet the safety standards for security equipment
3. Stable operation within a wide temperature range
Standard temperature resistance: 80℃ (customizable for higher temperatures)
Adapt to the temperature difference changes of outdoor equipment in high summer and low winter
4. Environmentally compliant materials
Comply with RoHS 2.0 & REACH environmental protection directives
It does not contain harmful substances such as lead and cadmium, and there are no obstacles to its export to the European Union
5. The electrical performance is reliable
The rated voltage is 30V AC, meeting the requirements of low-voltage electronic equipment
32AWG and above specifications (single piece/twisted optional), balancing flexibility and current-carrying capacity
6. Easy installation design
Standard insulation thickness, easy to cut and peel
Compatible with common terminal crimping and welding processes
Material:

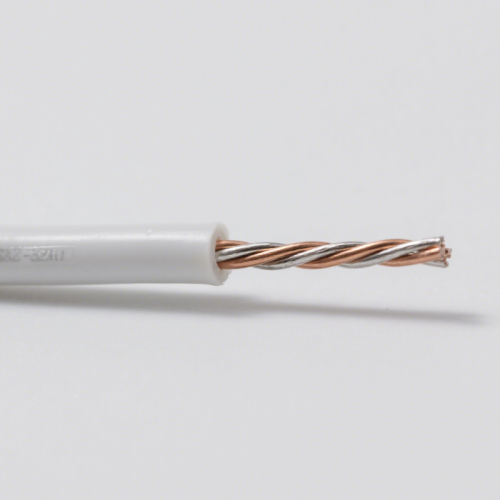

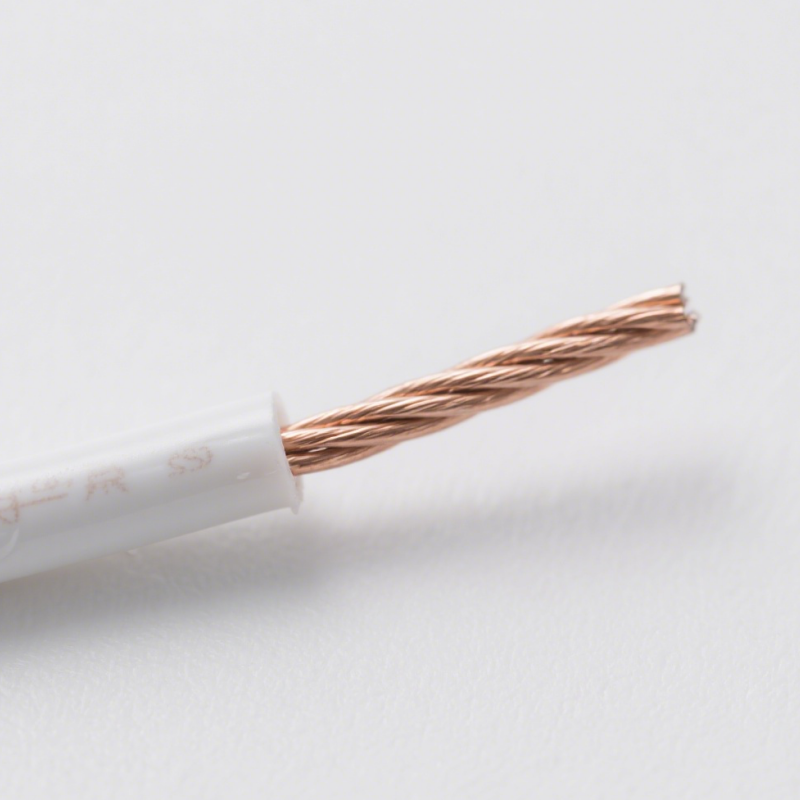

Conductors shall be single or stranded 32AWG or more tin-plated or bare copper
SR-PVC insulation, in compliance with ROHS 2.0 environmental protection standards and Reach standards
Use standard insulation thickness, easy to cut wires and easy to peel off
Standards:
Reference standards :UL758,UL1581
Conductors shall be single or stranded 32AWG or more tin-plated or bare copper
SR-PVC insulation, in compliance with ROHS 2.0 environmental protection standards and Reach standards
Passed UL VW-1 flame retardant test
Core Advantages:
Professional-grade waterproof and moisture-proof
SR-PVC high-density insulation layer effectively resists rain and damp environments
The tin-plated copper conductor is designed with anti-oxidation properties, ensuring it does not corrode even in long-term humid environments
Compared with ordinary PVC wires, its waterproof performance has been improved by more than 50%
2. Top-level security certification guarantee
Passed the UL VW-1 strict flame retardant test and self-extinguishes when removed from the fire source
Dual UL certification (UL758+UL1581) ensures worry-free market access in North America
Compliant with RoHS 2.0 and REACH, it operates smoothly in the EU market
3. Engineering-grade durable design
It operates within a wide temperature range of -40℃ to 80℃ (customizable 105℃ version available)
With a rated voltage of 30V AC, it can stably carry the current of security and outdoor equipment
Anti-aging insulation layer, with an outdoor service life of up to 8 to 10 years
4. Installation and maintenance advantages
The easy-to-cut design enables ordinary scissors to complete the cutting
Easy-to-peel process, quickly exposing the conductor in 3 seconds
Compatible with mainstream connectors, suitable for both crimping and soldering
5. Flexible customized services
Full specification coverage from 32AWG to 10AWG (single tube/twisted optional)
Supports color customization for easy circuit recognition
We offer coiling and cutting services to meet various production needs
6. Outstanding cost-effectiveness
It is 30% cheaper than imported similar products
The failure rate is less than 0.1%, significantly reducing after-sales costs
24-hour delivery in South China shortens the project cycle
