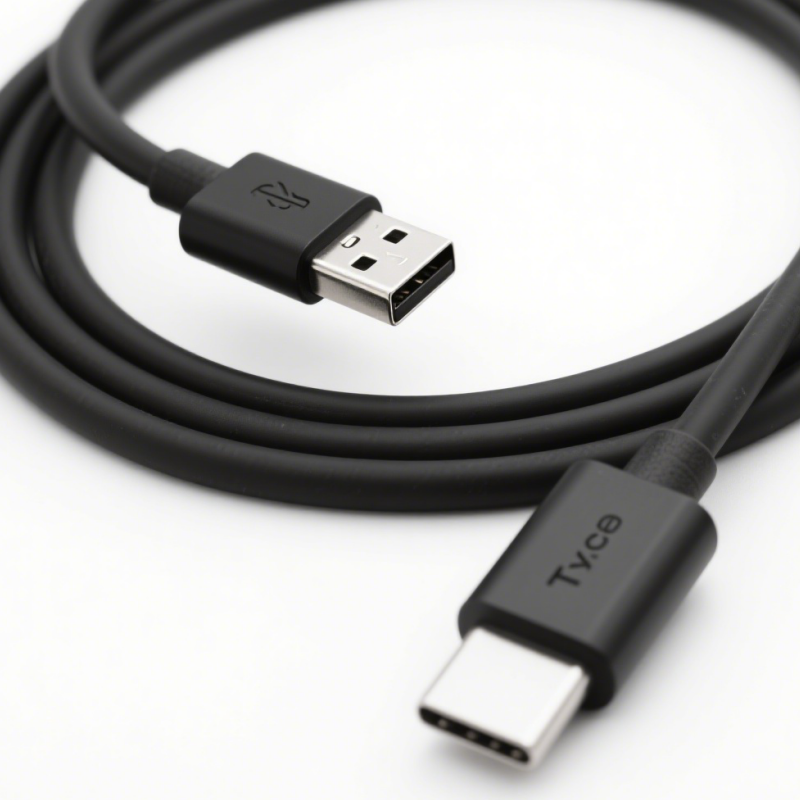

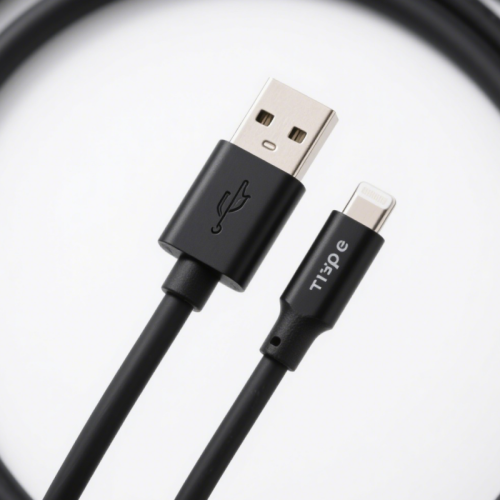

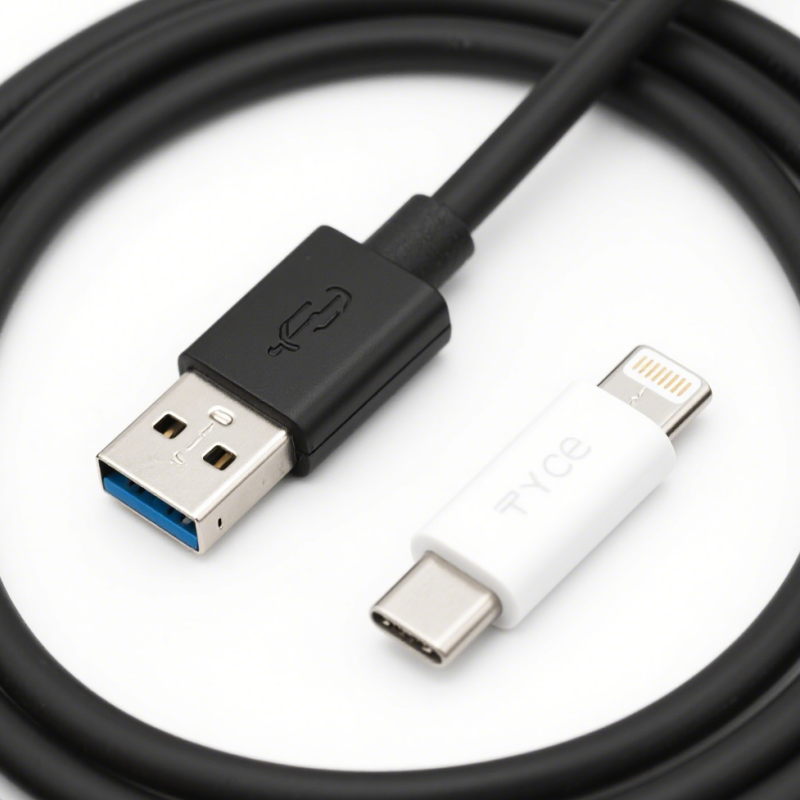

High-shielding USB 2.0 data cable
High-shielding USB 2.0 data cable
High-shielding USB 2.0 data cable
High-shielding USB 2.0 data cable

High-shielding USB 2.0 data cable

  • Payment Type: L/C,T/T,D/P,Paypal
  • Incoterm: FOB
  • Min. Order: 1 Piece/Pieces
  • Transportation: Ocean,Land,Air,Express
  • Port: shenzhen,guangzhou
Contact Us
Get Latest Price
    PRODUCT ATTRIBUTES
    Overview
    Product Attributes

    Brand: szxyq

    Species: Cable Assembly Other, Cable Multi-Conductor, Cable Single Conductor, Cable Assembly Usb, Cable Accessories

    Place Of Origin: China

    Shield: Shielded

    Cable Material: Polypropylene (Pp), Polyvinyl Chloride (Pvc), Polyethylene (Pe), Thermoplastic Elastomer (Tpe)

    Shield Type: Foil, Braid, Spiral

    Conductor Type: Copper, Copper, Bare; Copper, Tinned

    Conductor Coating: Tin

    Thermal Protection: Fireproof, Heat Resistant

    Wear Protection: Abrasion Resistant

    Liquid Protection: Fluid Resistant

    Overview
    Supply Ability & Additional Information

    Packaging: boxes

    Productivity: 1 million per month

    Transportation: Ocean,Land,Air,Express

    Place of Origin: China

    Supply Ability: 1 million per month

    Port: shenzhen,guangzhou

    Payment Type: L/C,T/T,D/P,Paypal

    Incoterm: FOB

    Packaging & Delivery
    Selling Units: Piece/Pieces
    Package Type: boxes
    Product Description
    Rated temperature: 80°C
    Rated voltage: 30V
    Function:
    utomotive Wiring Harness are high-quality cables, reliable wiring solutions, USB-C Connectors Video conferencing systems involve multiple audio and video streams and control streams, and the transmission distance generally exceeds 5 metres.
    Typical application scenarios
    Video conferencing systems: 5–15-metre extended transmission, ensuring synchronised audio and video
    Medical device connections: Ultrasound equipment, monitor data transmission
    Industrial control systems: PLC, human-machine interface device connections
    Professional audio equipment: Mixing consoles, effects processors digital connections
    Security surveillance systems: Remote control keyboards, DVR connections
    USB2.0（1）USB2.0(2)USB2.0（3）USB2.0(4)
    Materials:
    Conductors used: Single or stranded tinned copper, bare copper, optional.
    Common insulation materials: SR-PVC, PP, PE, FR-PP, FR-PE, TPEE
    Braided mesh, metal foil, or equivalent performance materials
    Sheath material: TPE, PVC
    Wire structure: 1 twisted pair (28 AWG) + 2 power wires (28 AWG) + ground wire + aluminium foil + braided/wrapped + outer sheath
    Standards:
    Compliant with USB 2.0 signal standards
    Environmentally friendly, compliant with RoHS 2.0 and Reach standards.
    Features: Easy to use, high shielding design, strong anti-interference performance, low transmission attenuation, and excellent performance.
    Core Advantages:
    1. Stable high-speed data transmission
    Compliant with USB 2.0 signal standards, with a transmission rate of up to 480Mbps
    Utilises 28AWG twisted pair signal cables to effectively reduce signal crosstalk
    Maintains signal integrity even during long-distance transmission exceeding 5 metres
    2. Professional-grade electromagnetic shielding
    Dual-layer shielding structure featuring aluminium foil and braided mesh
    Inner aluminium foil layer: 100% coverage, defends against high-frequency interference
    Outer braided mesh layer: ≥65% coverage, resists low-frequency interference
    Interference resistance improved by 80%, suitable for complex electromagnetic environments
    3. High-reliability power transmission
    Independent 2×28AWG power lines, supporting a maximum current of 1.5A
    Voltage drop <5% (at 5-metre distance)
    Provides stable power supply to remote devices
    4. Durable mechanical performance
    TPE/PVC outer sheath, bend resistance lifespan >10,000 cycles
    Operating temperature range: -20°C to 80°C
    Tear-resistant woven layer design, withstands 50N tensile force
    5. Environmental and safety certifications
    Compliant with RoHS 2.0 and REACH environmental standards
    Insulation resistance ≥100 MΩ·km
    Withstands 500V/1min voltage test without breakdown
    6. Convenient user experience
    Plug-and-play, no driver installation required
    Flexible cable body for easy installation
    Gold-plated connectors for corrosion resistance and extended lifespan
