TYPE-C 16-pin Male Board-Mount Connector
TYPE-C 16-pin Male Board-Mount Connector
TYPE-C 16-pin Male Board-Mount Connector
TYPE-C 16-pin Male Board-Mount Connector
TYPE-C 16-pin Male Board-Mount Connector
TYPE-C 16-pin Male Board-Mount Connector

TYPE-C 16-pin Male Board-Mount Connector

Get Latest Price
Payment Type:L/C,T/T,D/P,Paypal,others
Incoterm:FOB
Min. Order:1 Piece/Pieces
Transportation:Ocean,Land,Air,Express
Product Attributes

Model No.062021

Brandszxyq

SpeciesCable Assembly Other, Cable Assembly Fiber Optic, Cable Accessories, Cable Assembly Usb, Cable Assembly Dc Power, Cable Assembly Audio/Video

Place Of OriginChina

Cable HeightCustomizable height of the cable as per design

Insulation MaterialType of material used for insulation PVC,XLPE

Jacket MaterialOuter sheath material of the cable

Shield TypeType of shielding used, such as foil, braid

Standard ComplianceInternational standards met (e.g., UL, CE, RoHS)

Cable LengthLength of the cable, customizable per order

Packaging & Delivery
Selling Units : Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

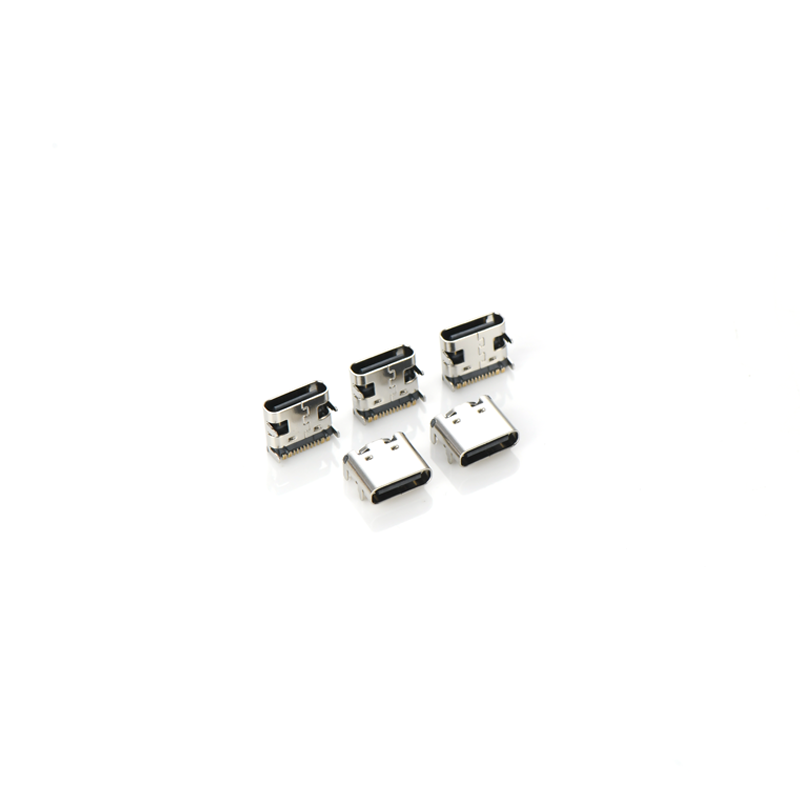

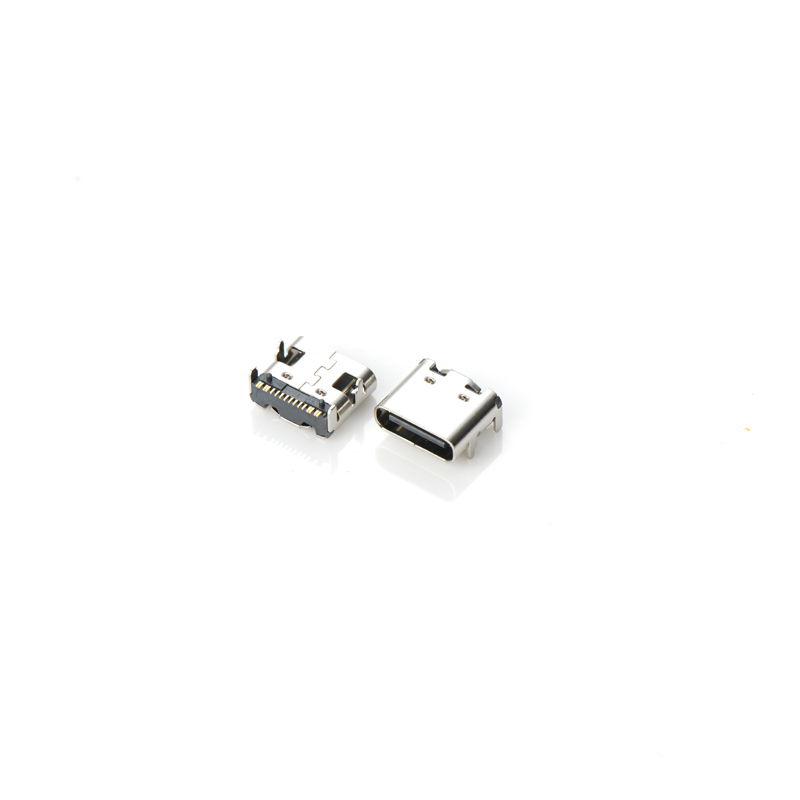

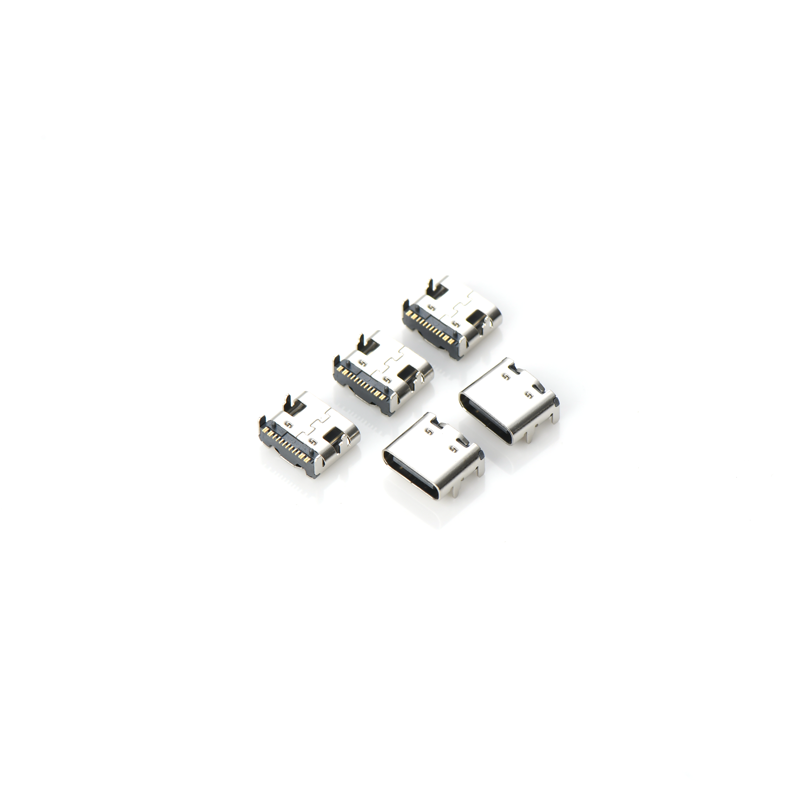

This 16-pin TYPE-C male on-board connector is a compact high-performance solution, specifically designed for PCB-level integration. This connector is smaller in size but can efficiently transmit signals and power, making it an ideal choice for embedded systems, consumer electronics and mobile devices. Its 16-pin layout supports basic USB 2.0 data transfer, USB Power Delivery, and custom pin arrangements for proprietary communication protocols.

With a robust SMT tail design and precise forming process, this connector ensures excellent coplanarity and reflow soldering stability. Its shielding structure minimizes electromagnetic interference (EMI) to the greatest extent, and the gold-plated contacts ensure reliable conductivity after thousands of insertion and extraction cycles. As a member of our USB-C connector series, it matches the mechanical size of the USB Type-C port while offering greater design flexibility.

Customization and Service
SZXYQ provides customers with comprehensive OEM and ODM services to meet their requirements for customized pin arrangements, shell colors or coating thicknesses, etc. Whether you are developing wearable devices, sensor nodes or embedded controllers, our expert engineers can ensure that they are compatible with the Usb-C Interface Components of your device. This connector can also be used in conjunction with custom Usb Type-C Plug cables to form a complete solution.

Male ConnectorsMale ConnectorsMale Connectors
