TYPE-C 24-pin Female Upright Connector Port
TYPE-C 24-pin Female Upright Connector Port
TYPE-C 24-pin Female Upright Connector Port
TYPE-C 24-pin Female Upright Connector Port
TYPE-C 24-pin Female Upright Connector Port
TYPE-C 24-pin Female Upright Connector Port

TYPE-C 24-pin Female Upright Connector Port

Get Latest Price
Payment Type:L/C,T/T,D/P,Paypal,others
Incoterm:FOB
Min. Order:1 Piece/Pieces
Transportation:Ocean,Land,Air,Express
Product Attributes

Model No.062007

Brandszxyq

SpeciesCable Assembly Other, Cable Assembly Fiber Optic, Cable Accessories, Cable Assembly Usb, Cable Assembly Dc Power, Cable Assembly Audio/Video

Place Of OriginChina

Cable HeightCustomizable height of the cable as per design

Insulation MaterialType of material used for insulation PVC,XLPE

Jacket MaterialOuter sheath material of the cable

Shield TypeType of shielding used, such as foil, braid

Standard ComplianceInternational standards met (e.g., UL, CE, RoHS)

Cable LengthLength of the cable, customizable per order

Packaging & Delivery
Selling Units : Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

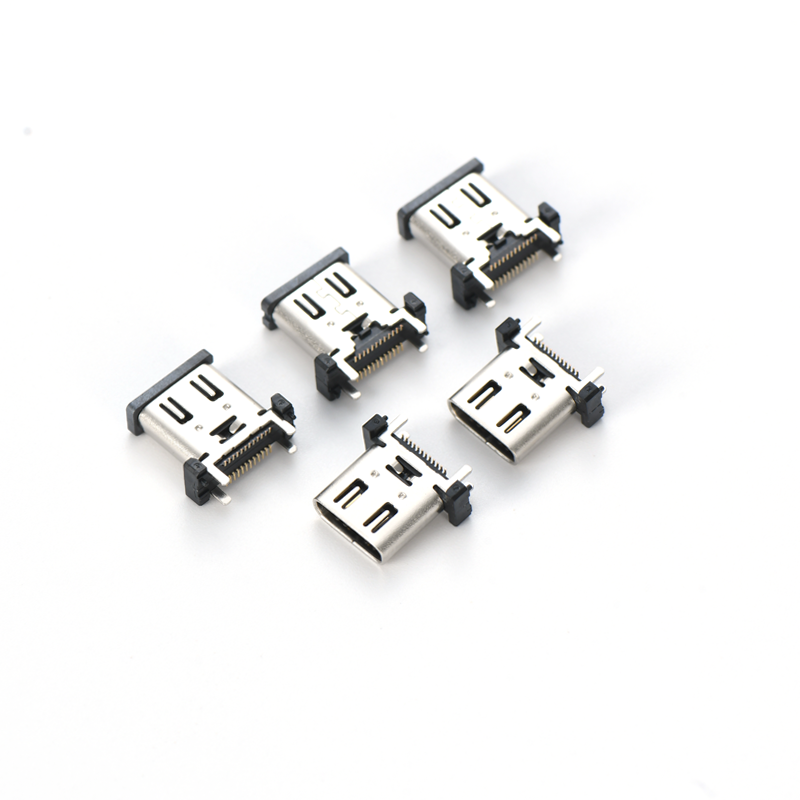

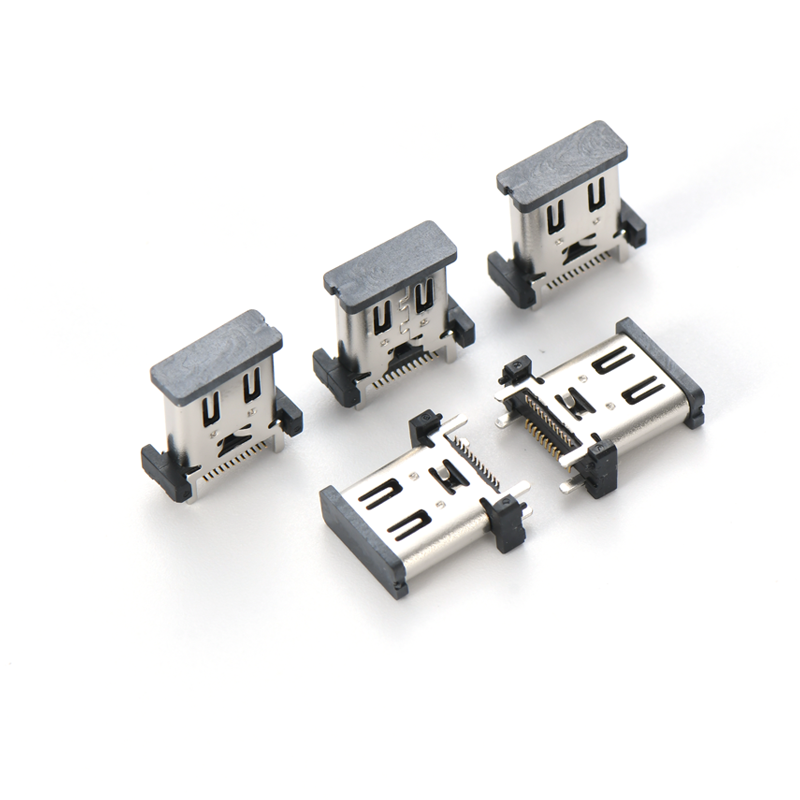

SZXYQ's 24-pin TYPE-C vertical female connector is a high-performance vertical mounting interface component supporting full USB Type-C functionality, including Fast Charging, data communication, and video signal transmission. This connector is a great option for flexible hardware designs because of its full 24-pin layout, which supports USB 3.2 Gen 2, DisplayPort Alt Mode, and Power Delivery 3.0 up to 100W.

Manufacturing places a strong emphasis on electrical dependability and mechanical durability.  Direct top insertion is made possible by its vertical design, which reduces horizontal PCB space.  This connector offers outstanding retention force and electromagnetic interference resistance thanks to its optimized SMT tail layout, gold-plated contacts, and reinforced metal shielding.  It works well with industrial controllers, portable instruments, vertical docking stations, and embedded computing boards.  It guarantees long-term dependability even in demanding deployment environments by supporting thousands of insertion cycles.

Personalization & Services:
 SZXYQ is committed to delivering tailored connector solutions for global customers.  We provide customization services to meet your unique mechanical layout or manufacturing process requirements, from prototyping to mass production. These services include solder tail modifications, pin definition adjustments, and housing material selection.  Leveraging our extensive expertise in Usb-C Interface Components, we help clients rapidly and accurately bring scalable, reliable Type-C Connectors to market.
USB-C Female ConnectorsUSB-C Female Connectors
