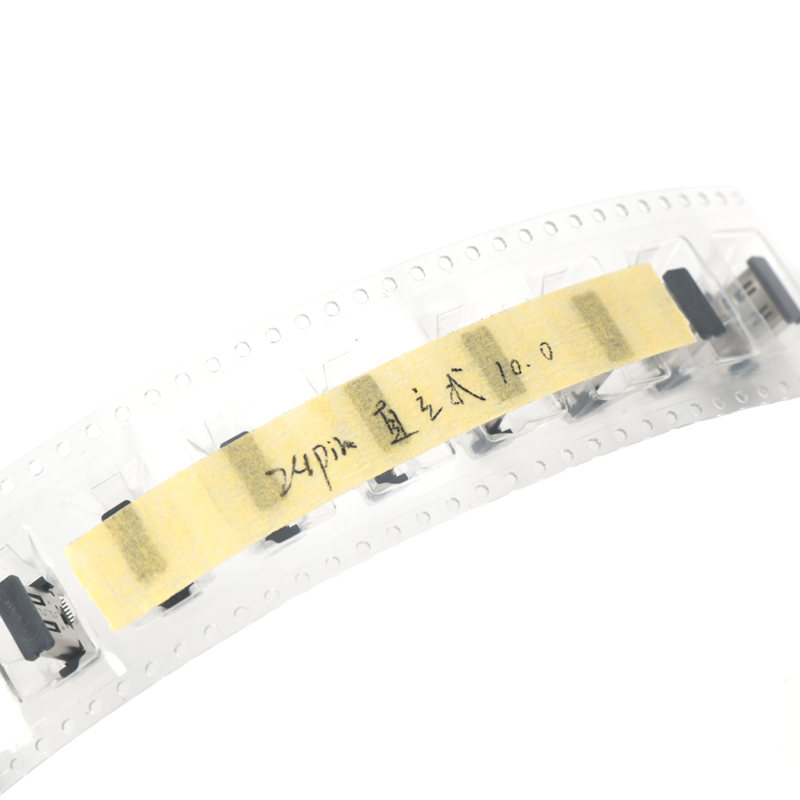

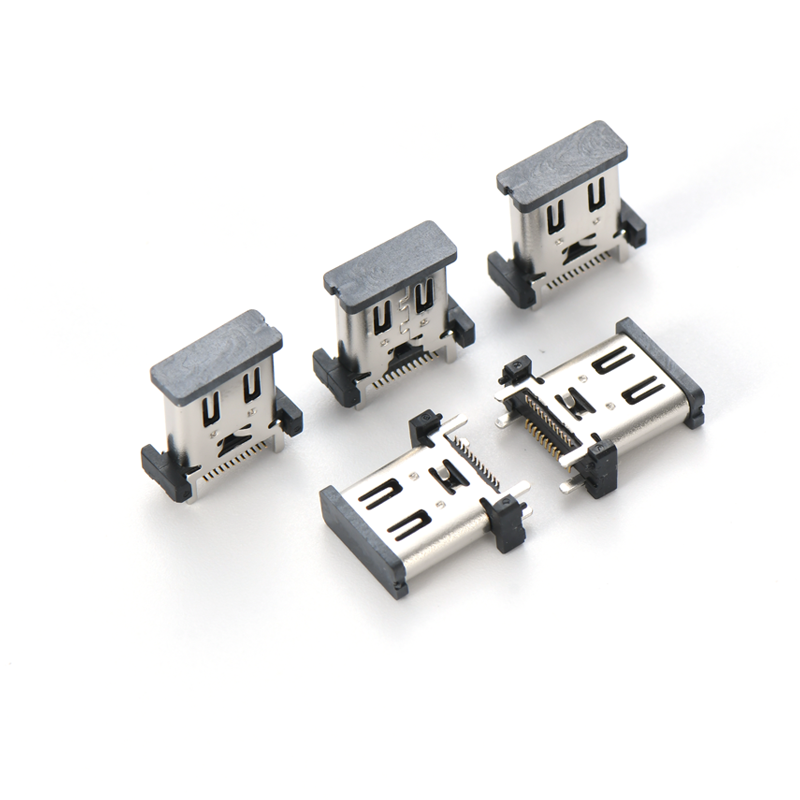

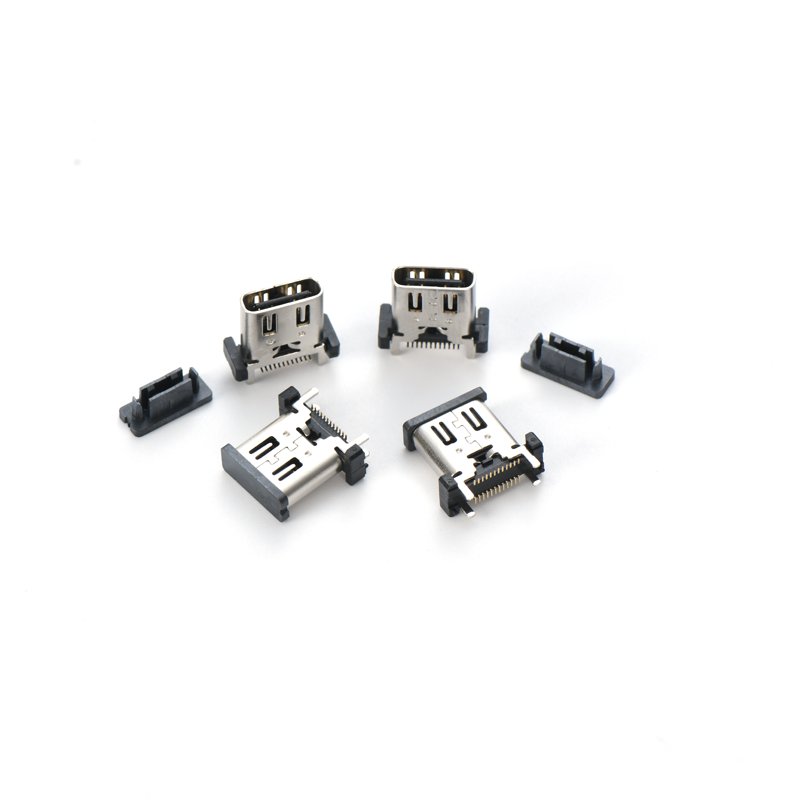

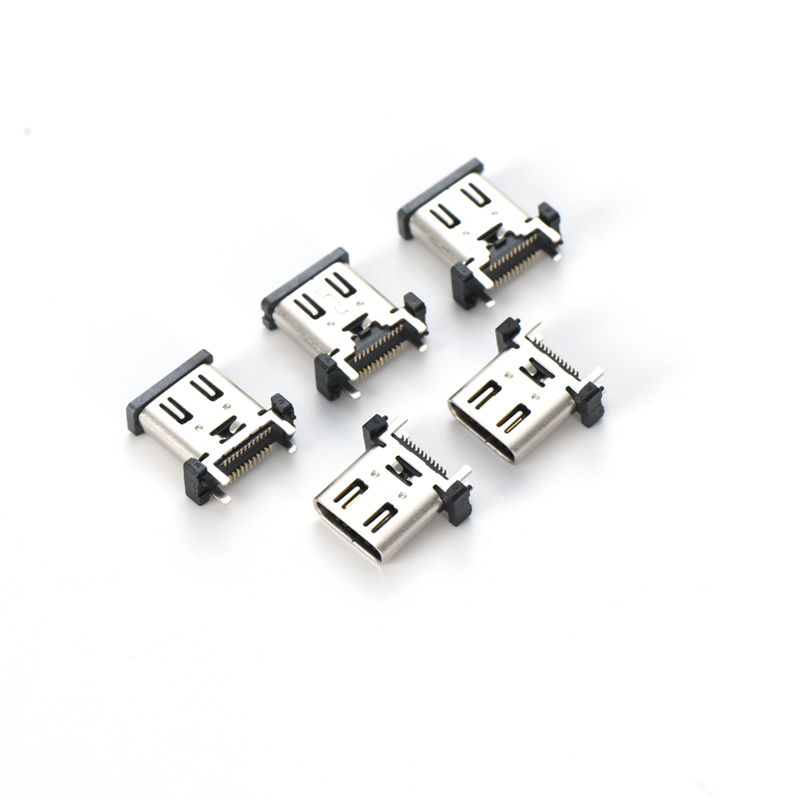

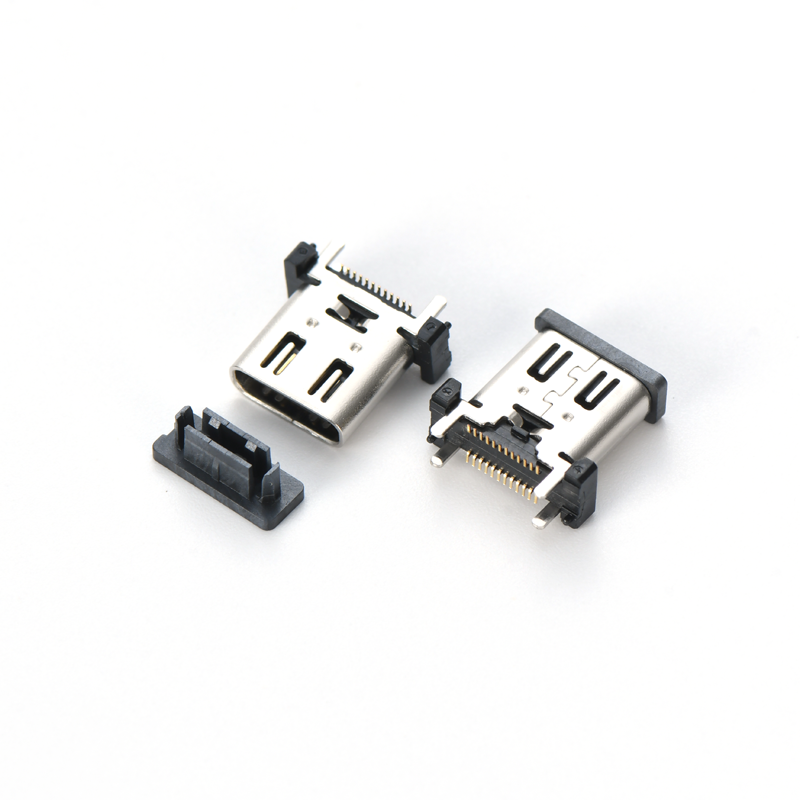

TYPE-C 24-pin Female Upright Connector Port

TYPE-C 24-pin Female Upright Connector Port

Contact Now

Pogo Pin Connectors

szxyq's Pogo Pin Connectors feature a precision spring-loaded pin design, specifically crafted for electronic devices requiring frequent plugging and unplugging and high-reliability connections. The pins are made of high-hardness beryllium copper and plated with gold, offering excellent electrical conductivity and wear resistance. The sleeves are made of high-strength stainless steel, combined with a plastic base formed by precision injection molding, ensuring a stable structure. The product has passed the ISO 9001 quality management system certification and RoHS environmental protection certification.

Application Scenarios

numerical controlled (CNC)

szxyq's Pogo Pin Connectors adhere to the concept of "Elastic Connection, Infinite Possibilities". We firmly believe that in the era of interconnected everything, every reliable connection can unleash the infinite potential of devices. From research and development to production, we are always driven by innovation and based on quality, deeply exploring customer needs. We are committed to providing customers with high-performance and high-reliability connection products through continuous technological optimization, strict quality control, and personalized services, helping all kinds of smart devices achieve stable interconnection and promoting the convenience and innovation of technological life.

Product Features

Elastic contact design

The spring-loaded pins can adaptively compensate for assembly tolerances between devices, ensuring constant close contact and reducing the risk of poor contact.

Excellent electrical conductivity

Gold-plated pins effectively reduce contact resistance, supporting high-speed data transmission and efficient power delivery.

Corrosion and wear resistance

The stainless-steel sleeve and gold-plated surface enhance corrosion resistance, adapting to use in complex environments.

Quick and convenient installation

Supports both SMT (Surface Mount Technology) and DIP (Dual In-line Package) installation methods, adapting to different production processes.

FAQ

How to choose the contact pressure of Pogo Pin Connectors?

The contact pressure should be selected according to the application scenario. For low-power data transmission scenarios, 100-150gf is sufficient; for high-current charging scenarios, 200-300gf is recommended to ensure good contact and reduce the risk of overheating.

What should I do if the connector has poor contact?

First, check if the pins are blocked by foreign objects or oxidized. You can wipe them with a dust-free cloth dipped in a special cleaner. If the spring elasticity weakens, replace the connector with a new one. In addition, confirm whether the device is installed properly to avoid poor contact caused by assembly problems.

What parameters of Pogo Pin Connectors can be customized?

The number of pins (from 1 to over 100 pins), pin pitch (starting from a minimum of 0.8mm), stroke (0.3-2.0mm), contact pressure, height, housing material, and color can be customized to meet different product design requirements.

What is the operating temperature range of the product?

The operating temperature of standard models is -20℃ to 70℃, and that of special customized models can be extended to -40℃ to 85℃, suitable for different environmental conditions.
