TYPE-C Female Vertical Connector 8.1mm
TYPE-C Female Vertical Connector 8.1mm
TYPE-C Female Vertical Connector 8.1mm
TYPE-C Female Vertical Connector 8.1mm

TYPE-C Female Vertical Connector 8.1mm

  • Payment Type: L/C,T/T,D/P,Paypal,others
  • Incoterm: FOB
  • Min. Order: 1 Piece/Pieces
  • Transportation: Ocean,Land,Air,Express
Contact Us
Get Latest Price
    PRODUCT ATTRIBUTES
    Overview
    Product Attributes

    Model No.: 062006

    Brand: szxyq

    Species: Cable Assembly Other, Cable Assembly Fiber Optic, Cable Accessories, Cable Assembly Usb, Cable Assembly Dc Power, Cable Assembly Audio/Video

    Place Of Origin: China

    Cable Height: Customizable height of the cable as per design

    Insulation Material: Type of material used for insulation PVC,XLPE

    Jacket Material: Outer sheath material of the cable

    Shield Type: Type of shielding used, such as foil, braid

    Standard Compliance: International standards met (e.g., UL, CE, RoHS)

    Cable Length: Length of the cable, customizable per order

    Overview
    Supply Ability & Additional Information

    Transportation: Ocean,Land,Air,Express

    Place of Origin: china

    Supply Ability: 1 million pieces per month

    Payment Type: L/C,T/T,D/P,Paypal,others

    Incoterm: FOB

    Packaging & Delivery
    Selling Units: Piece/Pieces
    Product Description

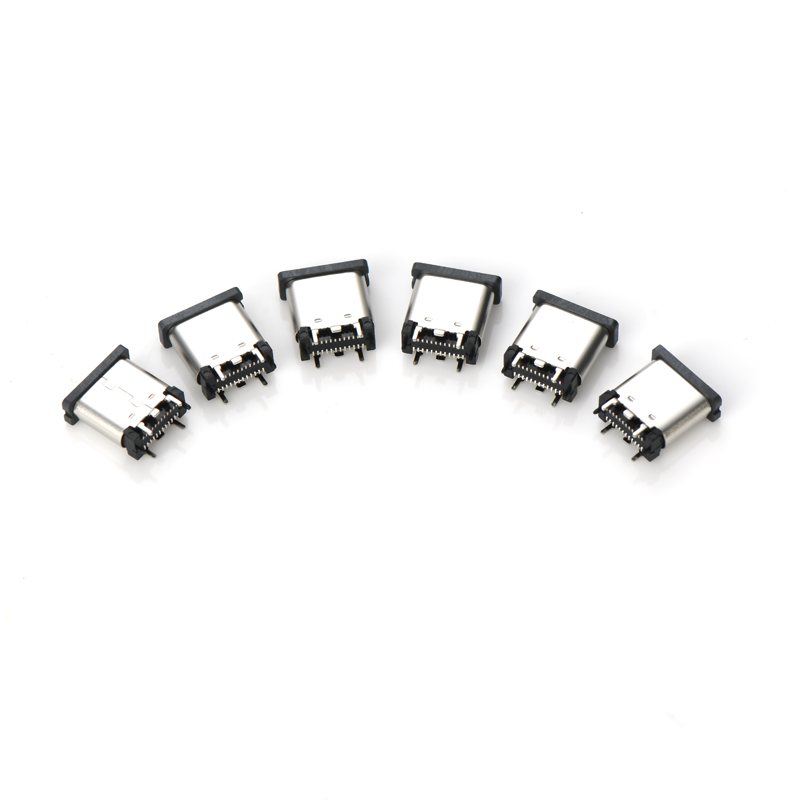

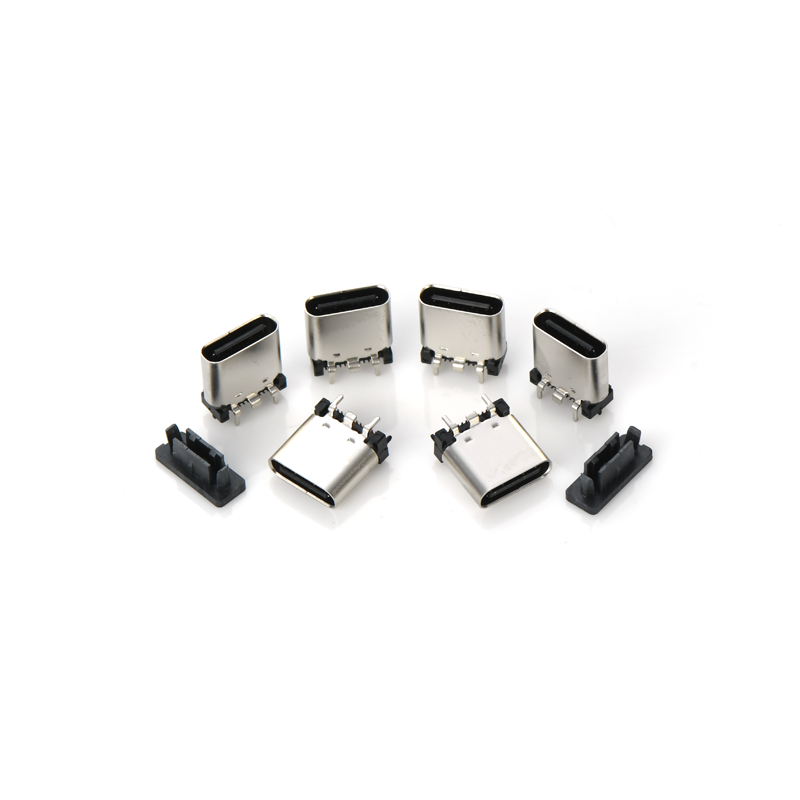

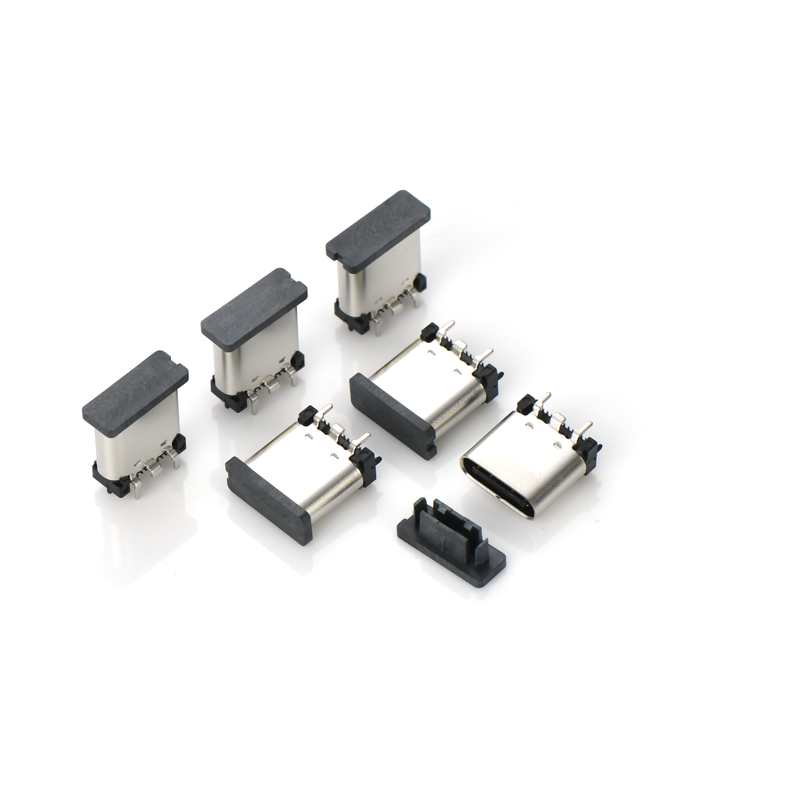

    The TYPE-C Female Vertical Connector (8.1mm) is a precision-engineered component designed for vertical board-mount configurations where horizontal space is limited. With its 8.1mm height, this USB-C Female Connector enables vertical plug-in, making it ideal for modular electronic systems, plug-in interface modules, and vertical docking stations.

    This connector is built to USB 3.1 and Power Delivery standards, offering a full 24-pin configuration that supports high-speed data transfer, video signal output, and up to 100W power transmission. Its upright orientation is highly advantageous in applications requiring easy top-side accessibility or vertical stacking, such as smart terminals, POS devices, and test equipment.

    Manufactured using UL94V-0 rated high-temperature plastic and gold-plated copper alloy contacts, this connector ensures optimal signal integrity, corrosion resistance, and long-term durability. It also features enhanced solder pad retention and shell grounding options to maintain performance in demanding environments.

    This product is a part of our USB-C Connectors catalog, offering seamless integration into your hardware ecosystem with full compatibility with Usb Type-C Ports and Usb-C Interface Components.

    Customization & Services:

    At SZXYQ, we offer comprehensive OEM and ODM support to adapt this vertical connector to your specific requirements. You can customize shell height, tail length, pin plating thickness, or even request custom molding to accommodate non-standard board thickness. Our in-house engineering team can also provide technical drawings, PCB footprint suggestions, and 3D models to streamline your integration process. Whether you're building compact consumer electronics or advanced communication hardware, we help ensure your product is functionally and structurally optimized using Type-C Connectors from a trusted source.
