Home> Products> UL-Cable> Flat Cable> UL-2468 High-quality Flat Cables

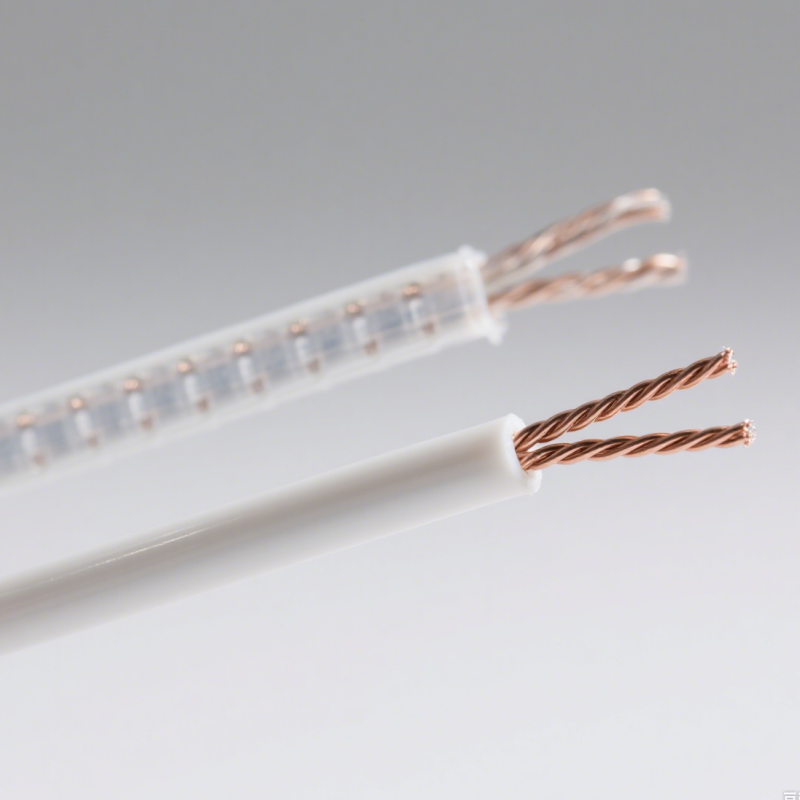

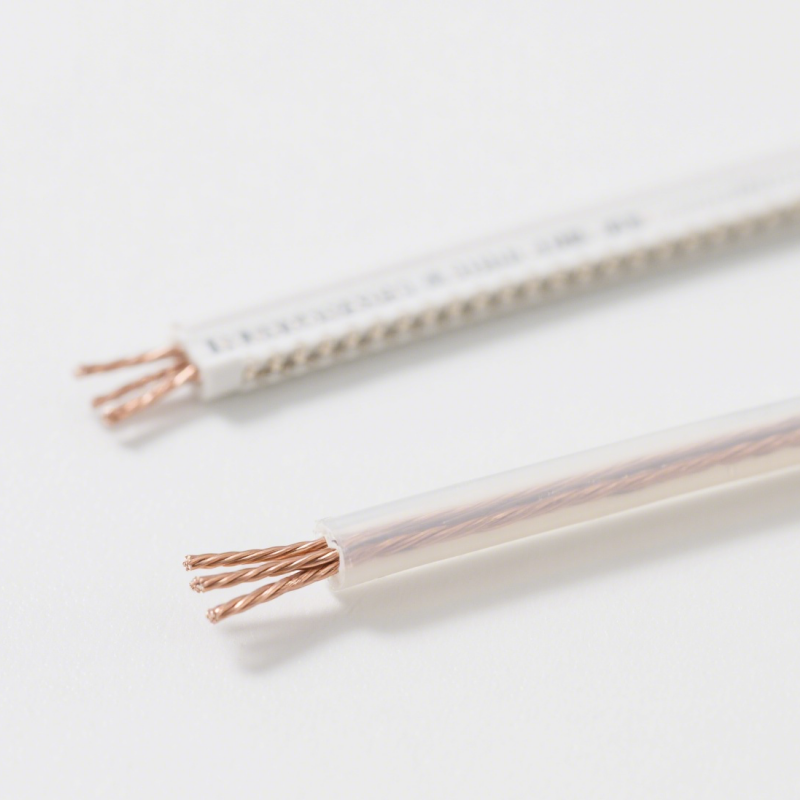

UL-2468 High-quality Flat Cables
UL-2468 High-quality Flat Cables
UL-2468 High-quality Flat Cables
UL-2468 High-quality Flat Cables

UL-2468 High-quality Flat Cables

  • Payment Type: L/C,T/T,D/P,Paypal
  • Incoterm: FOB
  • Min. Order: 1 Piece/Pieces
  • Transportation: Land,Air,Express,Ocean
  • Port: shenzhen,guangzhou
Supply Type
Contact Us
Get Latest Price
    PRODUCT ATTRIBUTES
    Overview
    Product Attributes

    Brand: szxyq

    Species: Cable Assembly Other, Cable Assembly Flat/Ribbon, Cable Single Conductor, Cable Multi-Conductor, Cable Assembly Dc Power, Cable Assembly Ac Power

    Place Of Origin: China

    Cable Material: Polyvinyl Chloride (Pvc)

    Rated Voltage: 300v

    Conductor Type: Copper, Bare; Copper, Tinned, Copper

    Conductor Coating: Tin

    Thermal Protection: Fireproof, Heat Resistant

    Wear Protection: Abrasion Resistant

    Liquid Protection: Fluid Resistant

    Overview
    Supply Ability & Additional Information

    Packaging: boxes

    Productivity: 1 million per month

    Transportation: Land,Air,Express,Ocean

    Place of Origin: China

    Supply Ability: 1 million per month

    Port: shenzhen,guangzhou

    Payment Type: L/C,T/T,D/P,Paypal

    Incoterm: FOB

    Packaging & Delivery
    Selling Units: Piece/Pieces
    Package Type: boxes
    Product Description
    Product Name:UL-2486
    Rated temperature: 80°C
    Rated voltage: 300V
    Function:
    UL Cables are high-quality cables Used for internal wiring in general electronic and electrical equipment, is reliable wiring solutions.
    Typical applications:
    Consumer electronics: Smart home appliances (TVs, air conditioners, washing machines), internal wiring for LED lighting equipment
    Industrial control: PLC control systems, servo motors, variable frequency drives, signal transmission for industrial robots
    Communication equipment: Internal connections within server, switch, and router cabinets
    Instrumentation: Low-voltage circuits for testing equipment and medical electronics (additional certification required)
    Automotive Electronics: In-vehicle entertainment systems, non-power wiring harnesses for ECU control units (requiring high-temperature verification)
    UL-2468(1)UL-2468(2)UL-2468(3)UL-2468(4)
    Material:
    Conductors use single or stranded 32~16AWG tinned or bare copper
    PVC insulation,
    compliant with ROHS 2.0 environmental standards and Reach standards
    Use standard insulation thickness, easy to cut wire, easy to strip
    Standards:
    Reference Standards: UL758, UL1581, CSA C22.2 No. 210.2
    Conductors use single or stranded 32–16 AWG tinned or bare copper
    PVC insulation,
    Compliant with ROHS 2.0 environmental standards and REACH standards
    Passed UL, VW-1, CSA FT1, and JQA F-Mark flame retardant tests
    Core Advantages:
    1. Safe and reliable, internationally certified
    Authoritative certification: Complies with UL758, UL1581, and CSA C22.2 No. 210.2 standards, and meets VW-1, FT1, and JQA F-Mark flame retardant testing requirements, ensuring safety in high-temperature environments.
    High Voltage and Temperature Resistance: Rated voltage of 300V and operating temperature of 80°C, meeting the electrical requirements of most electronic devices.
    2. High-Quality Conductors, Stable Transmission
    Conductor Options: Available in single or stranded 32–16 AWG tin-plated copper/bare copper conductors, featuring strong oxidation resistance and excellent conductivity.
    Anti-interference design: Multi-core parallel arrangement reduces signal crosstalk, suitable for precision instrument wiring.
    3. Environmentally compliant, globally applicable
    Complies with RoHS 2.0 and REACH environmental standards, free from harmful substances such as lead and cadmium, suitable for export to markets in Europe, America, Japan, and South Korea.
