Home> Products> UL-Cable> Internal Connection Line> High-Quality Connecting Cables UL-1007
High-Quality Connecting Cables UL-1007
High-Quality Connecting Cables UL-1007
High-Quality Connecting Cables UL-1007
High-Quality Connecting Cables UL-1007

High-Quality Connecting Cables UL-1007

  • Payment Type: L/C,T/T,D/P,Paypal
  • Incoterm: FOB
  • Min. Order: 1 Piece/Pieces
  • Transportation: Ocean,Land,Air,Express
  • Port: shenzhen,guangzhou
Supply Type
Contact Us
Get Latest Price
    PRODUCT ATTRIBUTES
    Overview
    Product Attributes

    Species: Cable Assembly Other, Cable Accessories, Cable Assembly Dc Power

    Place Of Origin: China

    Rated Voltage: 300v

    Conductor Type: Copper, Copper, Bare; Copper, Tinned

    Cable Material: Polyvinyl Chloride (Pvc)

    Conductor Coating: Tin

    Thermal Protection: Fire Resistant, Heat Resistant

    Wear Protection: Abrasion Resistant

    Overview
    Supply Ability & Additional Information

    Packaging: Boxes

    Transportation: Ocean,Land,Air,Express

    Place of Origin: China

    Supply Ability: 1 million per month

    Port: shenzhen,guangzhou

    Payment Type: L/C,T/T,D/P,Paypal

    Incoterm: FOB

    Packaging & Delivery
    Selling Units: Piece/Pieces
    Package Type: Boxes
    Product Description

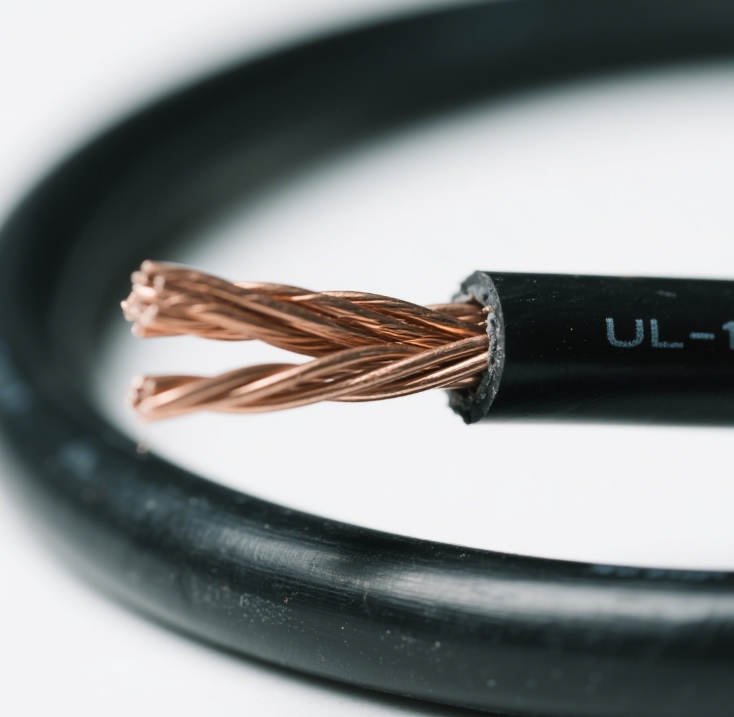

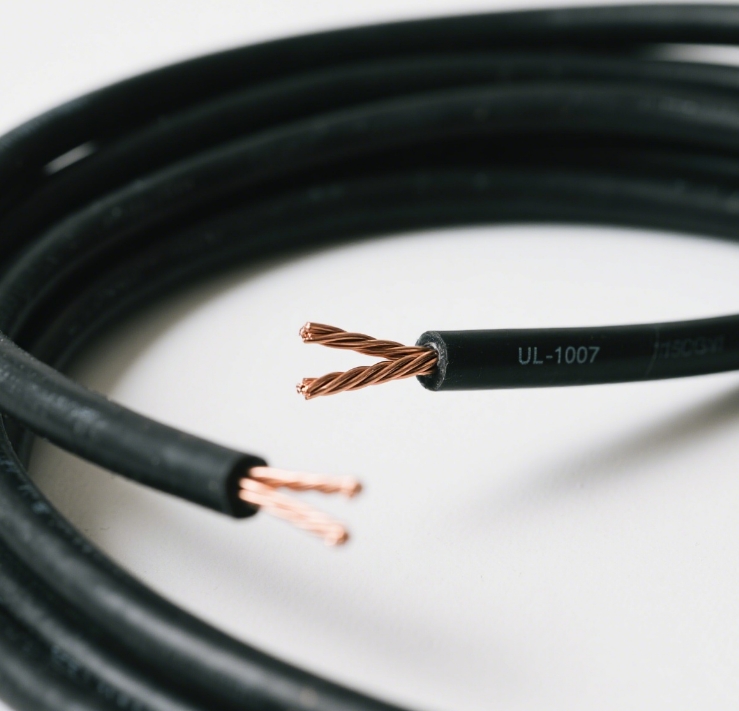

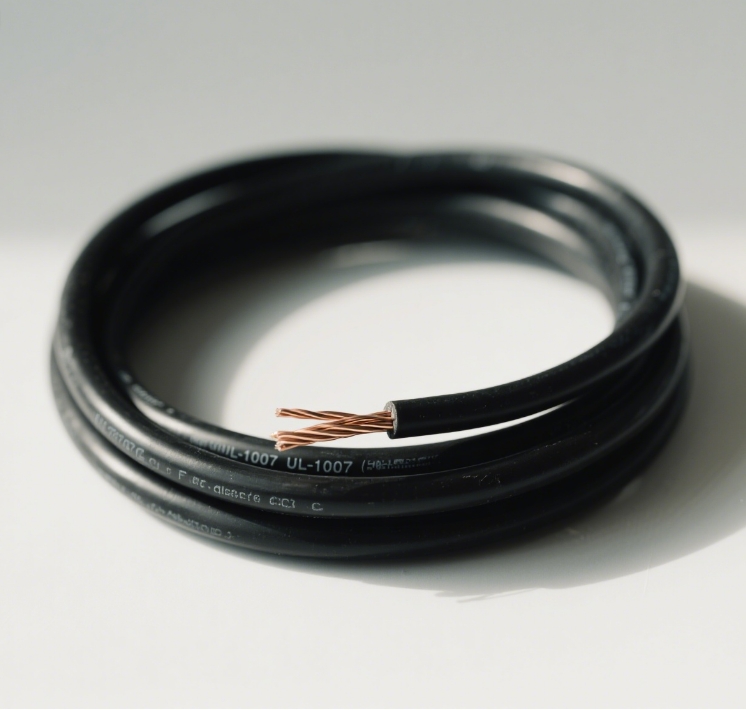

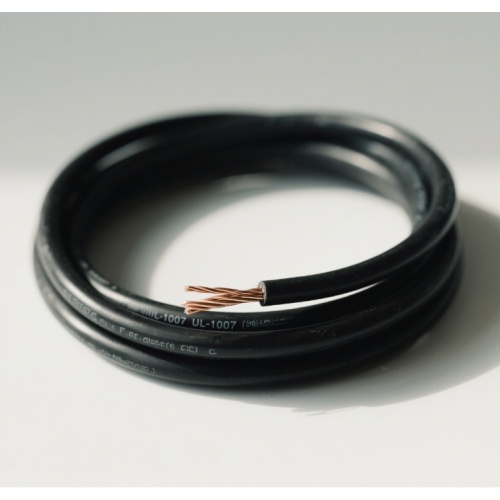

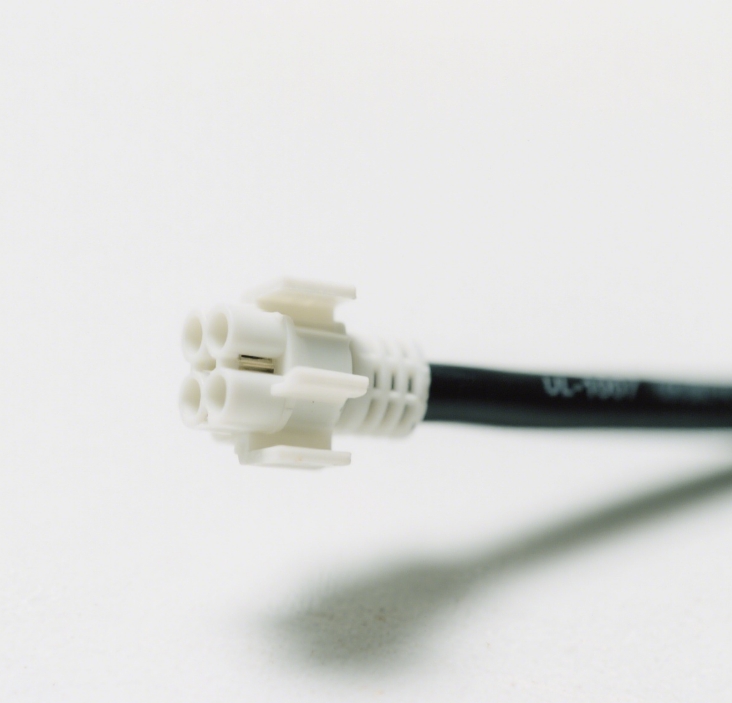

    Product Name: UL-1007
    Rated temperature :80℃
    Rated voltage :300V AC
    UL-1007(1)UL-1007(2)UL-1007(3)UL-1007(4)
    Function:
    UL Cables are used for internal wiring in general electronic and electrical equipment,is high-quality cables
    1. Internal wiring for household appliances
    Air conditioner/refrigerator control circuits: Withstands high temperatures up to 80°C, suitable for internal connections such as compressors and thermostats.
    Small appliances (rice cookers, juicers): 32-26 AWG fine wire diameter suitable for wiring in compact spaces.
    2. Electronic Equipment and Instruments
    Power Adapters/Chargers: 300V voltage rating, used for AC-DC module input/output connections.
    LED Driver Power Supplies: Passes VW-1 flame-retardant testing, ensuring safe operation of lighting fixtures.
    3. Low-voltage control systems
    Security equipment (cameras, alarms): Easy-to-strip design simplifies installation, CSA certification ensures reliability.
    Reference standards: UL758,UL1581,CSA C22.2No.210.2
    Material:
    The conductors of UL Cables are made of single or stranded 32 to 16AWG tin-plated or bare copper
    PVC insulation
    The insulation thickness is uniform, easy to cut and peel
    Standards:
    UL-1007 of UL Cables Complies with ROHS 2.0 environmental protection standards and Reach standards
    Passed UL VW-1, CSA FT1 and JQA F-Mark flame retardant tests
    Core Advantage:
    1.High-standard safety certification
    Passed the triple flame retardant certifications of UL VW-1, CSA FT1 and JQA F-Mark
    Complies with international standards UL758, UL1581 and CSA C22.2 No.210.2
    ROHS 2.0 environmental protection certification, free of harmful substances such as heavy metals
    2. Outstanding electrical performance
    With a rated voltage of 300V AC, it meets the safety requirements of low-voltage electrical appliances
    With a temperature resistance rating of 80℃, it is suitable for the working environment of conventional electronic equipment
    Multiple specifications ranging from 32 to 16AWG are available to cover different current requirements
    3. High-quality conductor design
    Tin plating/bare copper is available. The tin plating layer provides additional anti-oxidation protection
    Single or stranded structure, taking into account the requirements of hardness and flexibility
    Precise AWG specifications ensure stable electrical conductivity
