Home> Products> UL-Cable> Single-core Shielded Cable> High-quality Single-core Shilded Cables UL-1185
High-quality Single-core Shilded Cables UL-1185
High-quality Single-core Shilded Cables UL-1185
High-quality Single-core Shilded Cables UL-1185
High-quality Single-core Shilded Cables UL-1185

High-quality Single-core Shilded Cables UL-1185

  • Payment Type: L/C,T/T,D/P,Paypal
  • Incoterm: FOB
  • Min. Order: 1 Piece/Pieces
  • Transportation: Ocean,Land,Air,Express
  • Port: Shenzhen,guangzhou
Supply Type
Contact Us
Get Latest Price
    PRODUCT ATTRIBUTES
    Overview
    Product Attributes

    Brand: szxyq

    Species: Cable Assembly Other, Cable Single Conductor, Cable Assembly Dc Power, Cable Accessories

    Place Of Origin: China

    Shield: Shielded

    Cable Material: Polyvinyl Chloride (Pvc)

    Rated Voltage: 300v

    Shield Type: Spiral, Foil

    Conductor Type: Copper, Copper, Bare; Copper, Tinned

    Conductor Coating: Tin

    Thermal Protection: Heat Resistant, Heat Stabilized

    Wear Protection: Abrasion Resistant

    Liquid Protection: Fluid Resistant

    Overview
    Supply Ability & Additional Information

    Packaging: boxes

    Productivity: 1 million per month

    Transportation: Ocean,Land,Air,Express

    Place of Origin: China

    Supply Ability: 1 million per month

    Port: Shenzhen,guangzhou

    Payment Type: L/C,T/T,D/P,Paypal

    Incoterm: FOB

    Packaging & Delivery
    Selling Units: Piece/Pieces
    Package Type: boxes
    Product Description
    Product Name:UL-1185

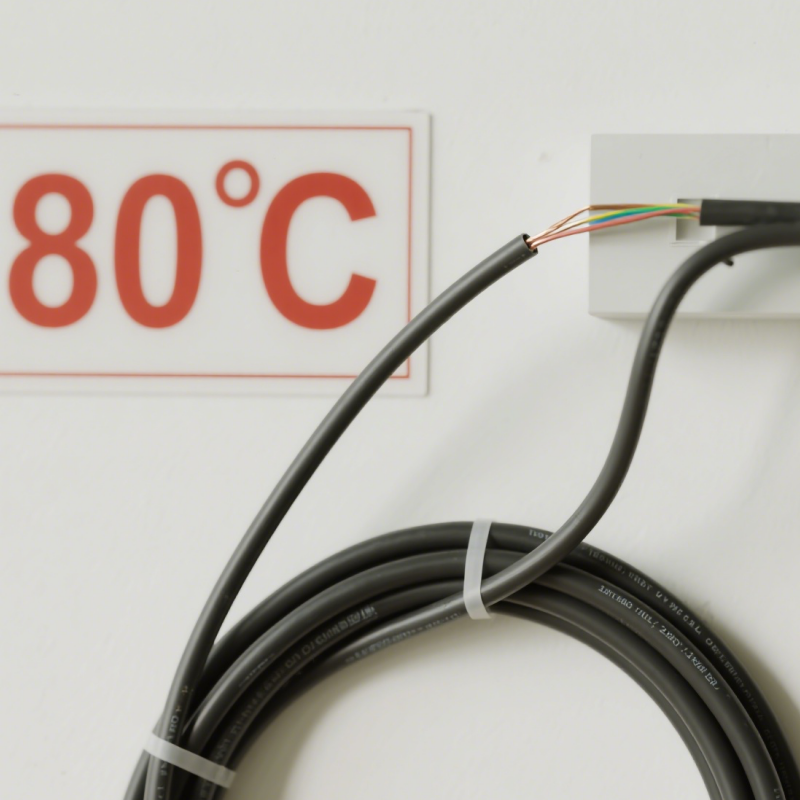

    Rated temperature: 80°C
    Rated voltage: 300V AC
    Function:
    UL Cables are high-quality cables Used for internal wiring in general electronic and electrical equipment, is reliable wiring solutions.
    Typical applications
    Internal wiring of industrial control cabinets
    Signal transmission in precision instruments
    Internal connections in medical equipment
    Power system wiring
    Automotive electronic wiring harnesses
    UL-1185(4)UL-1185(3)UL-1185(2)UL-1185(1)
    Material:
    Conductors are made of single or stranded 30 to 16AWG tin-plated or bare copper
    PVC insulation
    Complies with ROHS 2.0 environmental protection standards and Reach standards
    Tin-plated or bare copper wound shielding
    Standard insulation thickness, easy to cut and strip
    Standards:
    Reference Standards: UL758, UL1581, CSA C22.2 No. 210.2
    Conductors use single or stranded 30–16 AWG tinned or bare copper
    PVC insulation
    Complies with ROHS 2.0 environmental standards and REACH standards
    Tinned or bare copper braided shielding

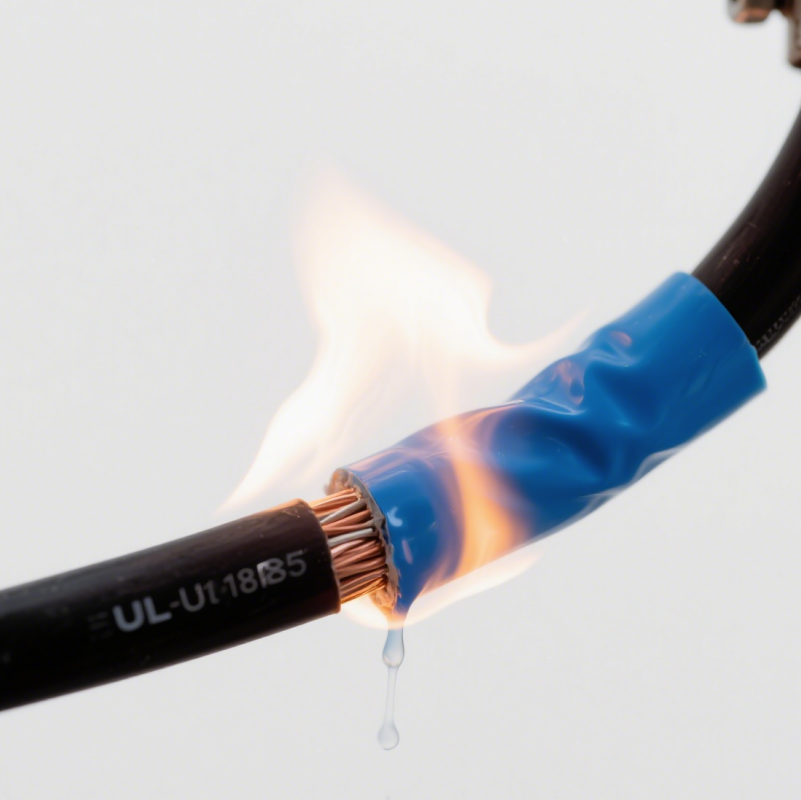

    Passes UL VW-1SC, CSA FT1, and JQA F-Mark flame retardant tests
    Core Advantages:
    1. High-quality conductors:
    Single or stranded tinned/bare copper conductors ranging from 30 to 16 AWG
    Optional tinned copper braided shielding layer for effective suppression of electromagnetic interference
    2. Safety certifications:
    Passed UL VW-1SC, CSA FT1, and JQA F-Mark flame retardant tests
    Compliant with ROHS 2.0 and REACH environmental standards
    3. Superior Performance:
    Rated voltage of 300V AC, operating temperature of 80°C
    PVC insulation layer with uniform thickness, easy to cut and strip
    Shielding layer provides excellent EMI/RFI protection
