Rated Temperature: 80°C
Rated Voltage: 300V AC
Reference Standards: UL758, UL1581, CSA C22.2 No.210.2
Conductor: Single or stranded, 30~16AWG tinned or bare copper
Insulation: PVC
Complies with ROHS 2.0 and Reach standards
Shielding: Tinned or bare copper braid
Flame Retardant Tests Passed: UL VW-1SC, CSA FT1, and JQA F-Mark
Features: Standard insulation thickness, easy to cut and strip
Application: For internal wiring of general electronic and electrical equipment

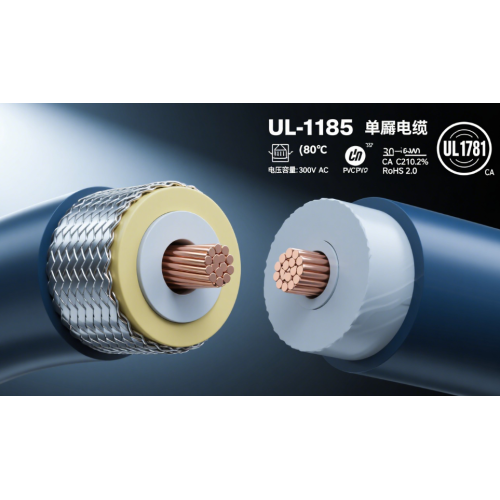

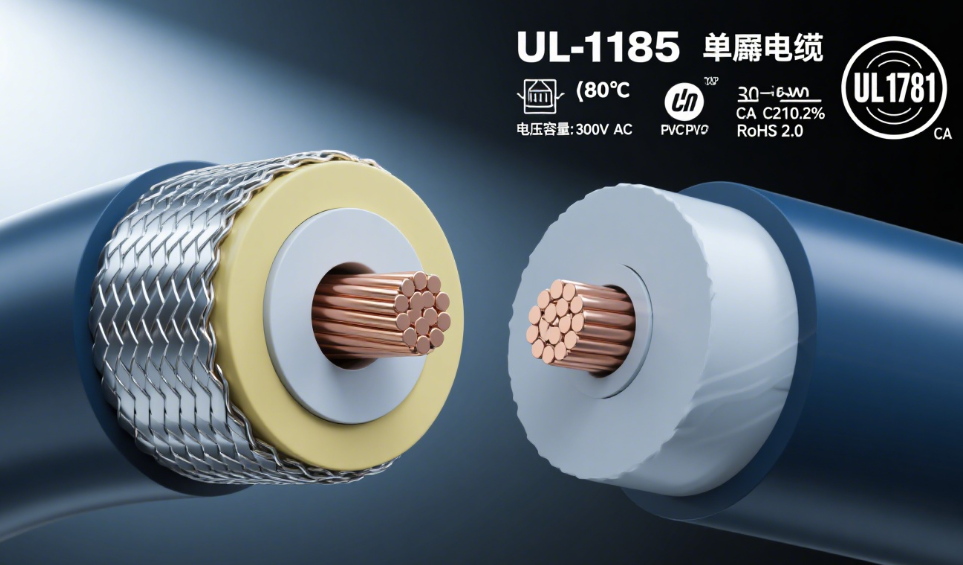

UL-1185
Single-core Shielded Cable: High-Performance Wiring Solution for Reliable Electrical Connections This UL-1185 single-core shielded cable is engineered to meet rigorous safety and performance standards, making it an ideal choice for internal wiring in a wide range of electronic and electrical devices. Designed with both durability and compliance in mind, this cable combines robust construction with environmentally responsible materials—ensuring long-term reliability in demanding applications. Whether used in consumer electronics, industrial controls, or medical equipment, the UL-1185 single-core shielded cable delivers consistent performance under real-world conditions. Key Features The UL-1185 single-core shielded cable features a conductor made from either solid or stranded tinned or bare copper wire, ranging from 30 AWG to 16 AWG, offering flexibility and strength depending on the application’s needs. The PVC insulation ensures excellent dielectric properties while maintaining a standard thickness that simplifies cutting and stripping processes during installation. A tinned or bare copper braided shield provides effective electromagnetic interference (EMI) protection, enhancing signal integrity in sensitive circuits. This cable complies with multiple international safety certifications including UL758, UL1581, and CSA C22.2 No.210.2, guaranteeing adherence to global regulatory frameworks. It also meets RoHS 2.0 and REACH environmental standards, reflecting a commitment to sustainable manufacturing practices. Detailed Description With an operating temperature rating of up to 80°C and a maximum AC voltage capacity of 300V, this single-conductor shielded cable is suitable for low-voltage applications where thermal stability and electrical safety are paramount. The shielding layer, composed of tinned or bare copper, wraps around the insulated core to reduce noise and crosstalk, which is particularly beneficial in audio systems, data transmission modules, and control panels. Its flame-retardant properties are verified through UL VW-1SC, CSA FT1, and JQA F-Mark tests, ensuring compliance with fire safety regulations across North America, Europe, and Asia. The smooth surface finish and consistent diameter allow for easy handling, while the standardized insulation thickness makes it compatible with most crimping tools and termination methods. This product is not only reliable but also user-friendly, reducing assembly time and minimizing errors during production. Applications This UL-1185 single-core shielded cable finds extensive use in general-purpose internal wiring for various industries such as consumer electronics, home appliances, automotive components, office equipment, and medical instrumentation. It serves as a dependable solution for connecting printed circuit boards, sensors, actuators, and other internal modules within enclosures. Due to its lightweight design and resistance to mechanical stress, it is especially favored in compact and portable devices where space efficiency and performance are critical. Whether deployed in a factory automation system or a handheld diagnostic tool, this cable supports seamless integration into modern electronic architectures. Customer Feedback Users consistently praise the UL-1185 single-core shielded cable for its ease of installation and consistent performance across different environments. Many reviewers highlight how the shielding significantly improves signal clarity in noisy electrical environments, while others appreciate the cable’s ability to withstand repeated bending without degradation. Customers note that the standardized dimensions make it compatible with existing tooling and workflows, eliminating the need for special equipment or training. Overall, satisfaction stems from the balance between technical excellence and practical usability—key factors for engineers and procurement specialists alike.
Frequently Asked Questions
What makes the UL-1185 single-core shielded cable stand out from similar products?
Its combination of certified compliance, EMI shielding, and environmental friendliness sets it apart. Unlike many generic cables, it undergoes stringent testing for flame resistance and mechanical endurance, ensuring safe operation even in high-risk settings.
Is this cable suitable for outdoor use?
While primarily designed for indoor and enclosed applications, it can be used outdoors if properly protected from direct exposure to UV radiation and moisture. For outdoor installations, consider using conduit or protective sheathing.
Can I use this cable for power transmission?
It is rated for 300V AC at 80°C, making it appropriate for low-voltage signal and control wiring rather than high-power distribution. Always verify load requirements before applying to any power-carrying function.
How does the shielding benefit my device?
The copper braided shield minimizes electromagnetic interference, preventing signal distortion and improving overall system reliability—especially important in digital and analog circuits where precision matters.
Why should I choose this over unshielded alternatives?
Shielded cables like this UL-1185 variant offer superior noise immunity, which is essential for maintaining accurate data transfer and minimizing false triggers in sensitive electronics.
