Rated Temperature: 80°C
Rated Voltage: 300V
Reference Standards: UL758, UL1581, CSA C22.2 No.210.2
Conductor: Single or stranded 32~16AWG tinned or bare copper with SR-PVC insulation, compliant with ROHS environmental standards
Shielding: Tinned or bare copper braided shield with PVC jacket, compliant with ROHS 2.0 and Reach standards
Flame Retardancy: Passes UL VW-1SC, CSA FT1, and JQA F-Mark flame tests
Features: Standard insulation thickness, easy to cut and strip
Application: For internal wiring of general electronic and electrical equipment.

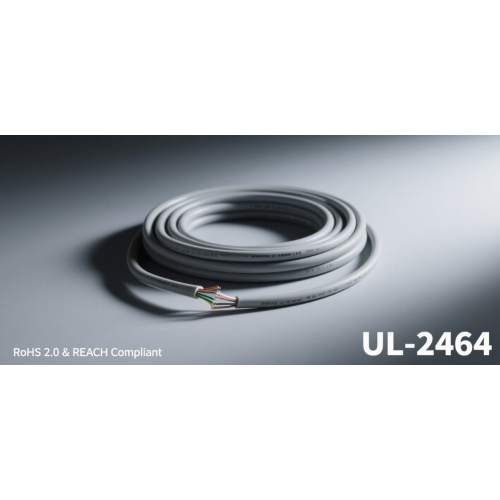

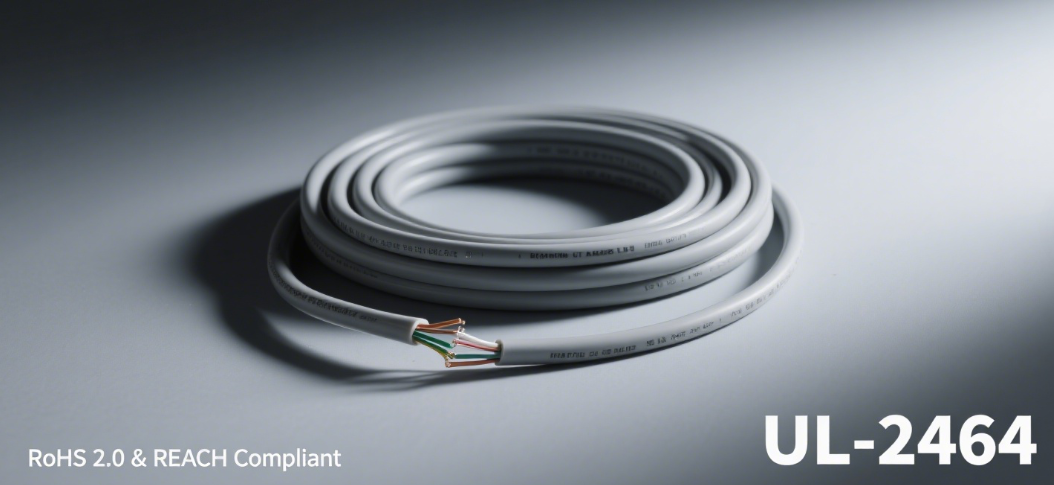

UL-2464 PVC Material Cables – High-Quality, Environmentally Compliant Wiring for Reliable Electronic Applications These UL-2464 pvc material cables are engineered to meet rigorous international safety and performance standards, making them ideal for internal wiring in a wide range of electrical and electronic devices. Designed with both functionality and environmental responsibility in mind, these cables combine durability, flexibility, and compliance with global regulatory frameworks such as UL758, UL1581, CSA C22.2No.210.2, RoHS 2.0, and REACH. Whether you're developing consumer electronics, industrial equipment, or home appliances, this cable offers dependable signal transmission under normal operating conditions. Key Features: - Rated at 300V and 80°C, ensuring safe operation in standard indoor environments - Conductors made from tinned or bare copper, available in 32 to 16 AWG sizes for versatile applications - SR-PVC insulation provides excellent dielectric strength, mechanical resilience, and ease of stripping - Braided shielding over the conductor enhances electromagnetic interference (EMI) protection - Outer jacket constructed from flame-retardant PVC that meets UL VW-1SC, CSA FT1, and JQA F-Mark fire safety requirements - Fully compliant with RoHS 2.0 and REACH regulations—free from hazardous substances like lead, mercury, and phthalates - Uniform insulation thickness allows for consistent performance across all conductors - Easy to cut, strip, and terminate—ideal for automated assembly lines or manual installations Detailed Description: The UL-2464 pvc material cables feature a robust construction designed for long-term reliability in general-purpose electrical connections. The single-strand or stranded copper conductors offer flexibility while maintaining low resistance, minimizing power loss. The SR-PVC insulation layer ensures reliable electrical isolation even in moderate temperature variations, while the braided shield effectively reduces noise and crosstalk in sensitive circuits. These cables are not only suitable for domestic use but also comply with international safety norms, including those enforced by Underwriters Laboratories (UL), Canadian Standards Association (CSA), and Japan's Quality Assurance Association (JQA). Their flame-retardant properties make them particularly suitable for enclosed enclosures where fire propagation must be minimized. Additionally, the smooth outer sheath facilitates easy routing through tight spaces without damage, enhancing overall installation efficiency. Ideal Use Cases: This type of cable is commonly used in internal wiring for household appliances, small motors, audio/video equipment, medical devices, automation systems, and control panels. It serves as an excellent choice for OEM manufacturers seeking cost-effective yet high-performance solutions that adhere to global environmental standards. Because it supports multiple wire gauges—from fine 32 AWG to heavier 16 AWG—it can accommodate diverse current demands, from low-power sensors to higher-load components within compact designs. Customer Feedback: Users consistently praise the cable’s balance between affordability and quality. Many highlight its ease of handling during production, noting how the uniform insulation simplifies termination processes. Others appreciate the peace of mind provided by third-party certifications like UL and CSA, which ensure compatibility with global markets. A frequent comment is that the shielding significantly improves signal integrity in noisy environments—an advantage often overlooked in budget-grade alternatives.
Frequently Asked Questions:
What does UL-2464 mean in cable specifications?
UL-2464 refers to a specific standard set by Underwriters Laboratories for flexible insulated wires intended for general-purpose use in electronic devices. It outlines requirements for materials, dimensions, voltage ratings, and fire resistance.
Are these cables RoHS-compliant?
Yes, they fully conform to the Restriction of Hazardous Substances Directive (RoHS 2.0), meaning they contain no banned heavy metals or harmful chemicals, making them safe for both users and the environment.
Can I use this cable outdoors?
While the cable is built for indoor applications due to its PVC jacket and flame-retardant properties, prolonged exposure to UV light or extreme weather may degrade performance. For outdoor installations, consider using cables specifically rated for outdoor use.
How do I identify the correct gauge for my application?
Refer to your device’s current requirements. Smaller gauges (like 32 AWG) suit low-current circuits; larger ones (such as 16 AWG) handle higher loads. Always consult manufacturer guidelines or electrical codes when in doubt.
